800L Jacketed Triaxial Dispersion Tank Automotive Paint Mixing Machine
- Application:
- Liquid with Suspended Solids, Liquid
- After-sales Service:
- Online Support
- Warranty:
- 1 Year
- Mixer Type:
- Mixing Tank
- Working:
- High Speed Mixer
- Certification:
- ISO
Basic Info.
| Layout Type | Verticle | Application Area | Metallurgy&Mineral |
| Condition | New | Operating type | Continuous Operating |
| Mixing Power | 7.5kw | Cylinder Size | 1000mm |
| Dispersed Power | 11kw | Mixing Speed | 60rpm |
| Material | SUS304 | Dispersed Speed | 1400rpm |
| Specification | 800L | Transport Package | Wooden Case |
Product Overview

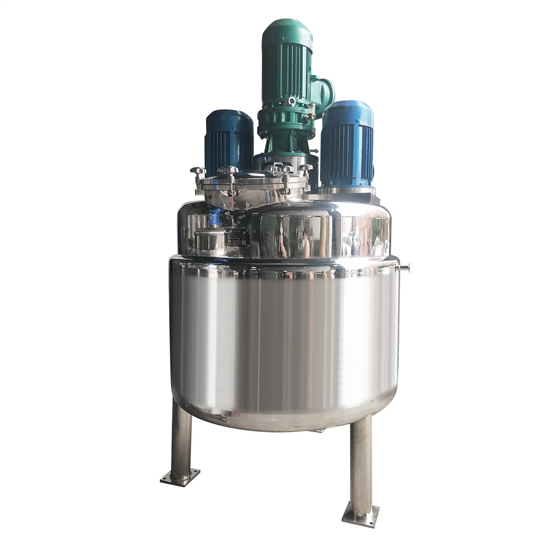

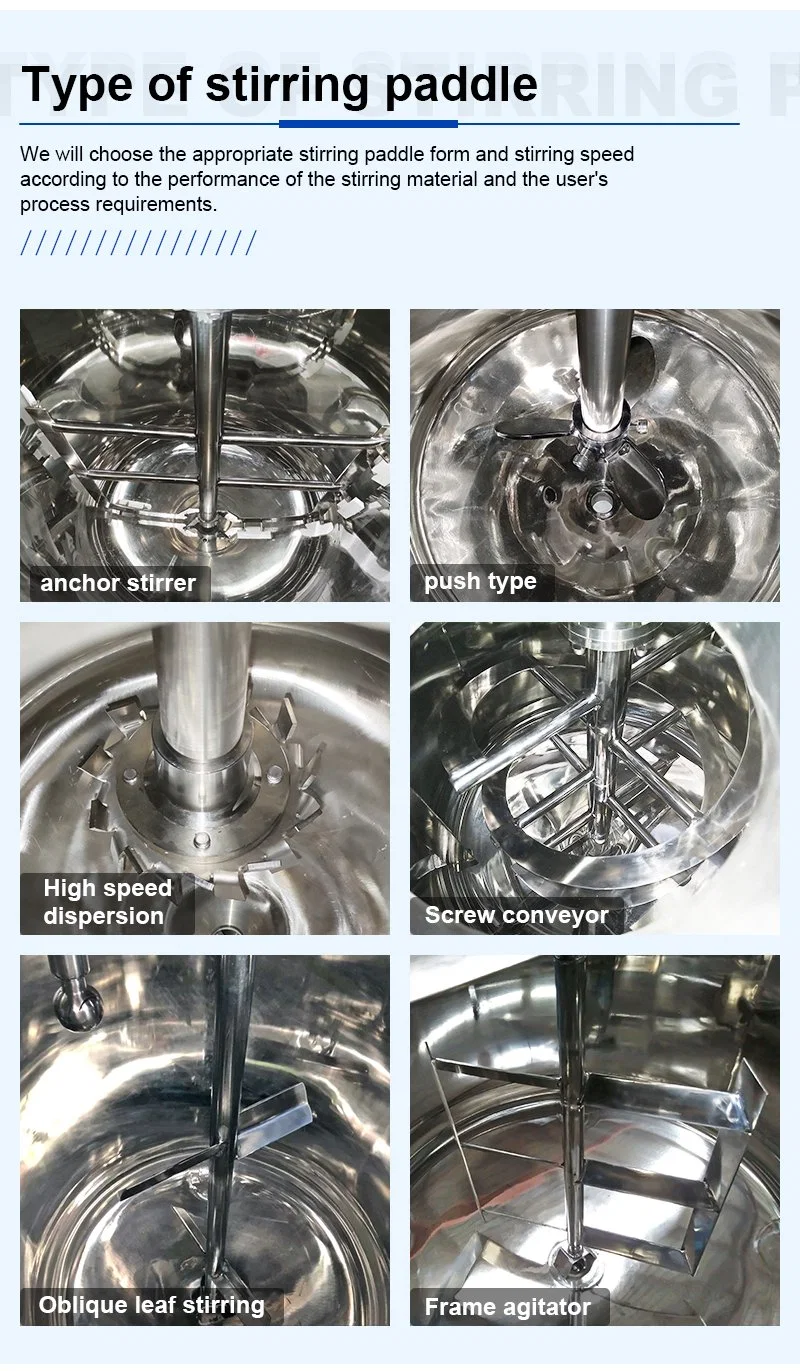

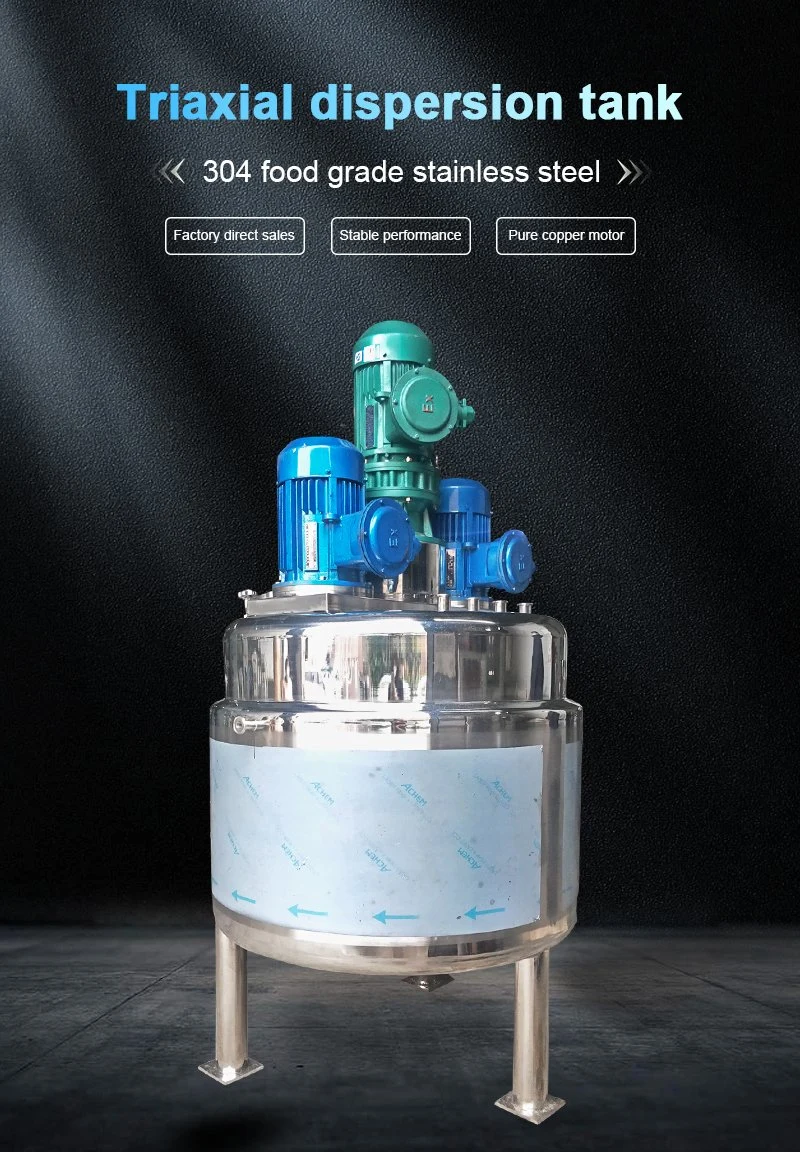

Triaxial dispersion tank combines low-speed powerful stirring and high-speed dispersion in one, which has good adaptability to medium and high viscosity and thixotropic materials. Stirring and dispersion can be carried out at the same time to obtain the desired effect. The equipment is suitable for mixing, dissolving, and dispersion of various materials and color mixing. The low-speed stirrer is an anchor-type structure, the gap between the anchor-type stirring paddle and the cylinder wall of the tank is small, which plays the role of stirring the material and can achieve the requirement of the paint mixing process when used alone. High-speed dispersion is the symmetrical distribution of the double-axis type, and the dispersion plate is disk-shaped and serrated, which plays a role in the dispersion of materials.
Technical parameter
| Volume(L) | Cylinder Size(mm) | Mixing power(KW) | Mixing speed(rpm) | Dispersed power(KW) | Dispersed speed(rpm) |
| 800 | 1000 | 7.5 | 60 | 11 | 1400 |
| 1000 | 1100 | 4 | 60 | 18.5 | 1400 |
| 2000 | 1300 | 5.5 | 60 | 30 | 1400 |
| 3000 | 1500 | 7.5 | 60 | 45 | 1400 |
| 4000 | 1700 | 7.5 | 60 | 55 | 1400 |
| 5000 | 1900 | 11 | 60 | 75 | 1400 |
| 10000 | 2000 | 15 | 60 | 110 | 1400 |
Note: The technical parameters of the triaxial dispersion tank in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.
