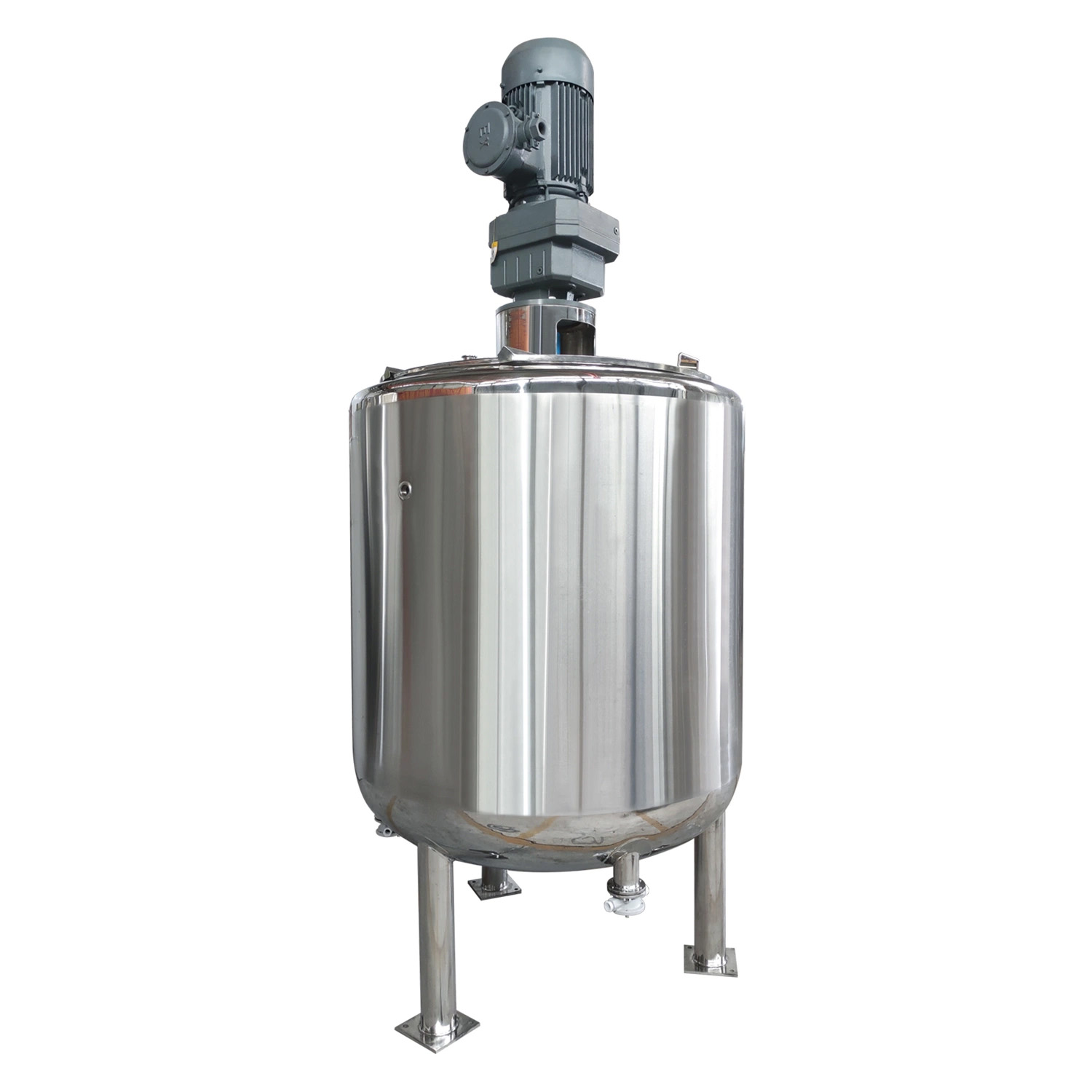

1000L Electrical Heating 304 Stainless Steel Fruit Juice Production Line Mixing Tank
- Application:
- ,Liquid, Essence,Liquid, Essence,,Liquid, Essence,Liquid, Essence,Liquid with Suspended Solids, Viscous Fluid, Liquid
- After-sales Service:
- Online Support
- Warranty:
- 1 Year
- Mixer Type:
- Agitator
- Working:
- Customized Mixing Speed
- Stirring Type:
- Customized Mixing Method
Basic Info.
| Application Area | Chemical | Certification | ISO |
| Mixing Drum Shape | Customer Customization | Layout Type | Verticle |
| Operating type | Cycle Operating | Additional Capabilities | Customer Customization |
| Motor Power | 11kw | Condition | New |
| Sealing Form | Mechanical Seal | Speed | 60rpm |
| Electric Heating Power | 12kw | Heating Mode | Electric Heating |
| Cylinder Diameter | 1100mm | Thermal Insulation Material | Aluminum Silicate |
| Mixing Paddle Type | Anchored Stirrer with Scraping Edge | Cylinder Thickness | 5mm |
| Place of Use | Factory | Applicable Materials | Liquid Slurry |
| Transport Package | Wooden Box Packaging | Equipment Material | 304 Stainless Steel |
| Origin | China | Specification | 1000L |
Product Overview
Mixing tank is mainly used for mixing, mixing, blending and homogenizing materials. Stainless steel mixing tank effectively shortens the mixing time, saves labor and speeds up production. It is the main equipment for modern industrial production.
Product structure
Mixing tank is composed of mixing tank body, mixing tank cover, mixer, support, transmission device, shaft seal device, etc. it can also beequipped withheating device or cooling device according to the process requirements.
Technical parameter
| Volume(L) | Cylinder Size(mm) | Motor Power(KW) | Speed(rpm) | Material |
| 50 | 300 | 0.75 | 30-180 | SUS304 / SUS316L |
| 100 | 500 | 0.75 | 30-180 | SUS304 / SUS316L |
| 200 | 600 | 1.1 | 30-180 | SUS304 / SUS316L |
| 300 | 700 | 1.5 | 30-180 | SUS304 / SUS316L |
| 500 | 900 | 2.2 | 30-180 | SUS304 / SUS316L |
| 800 | 1000 | 3 | 30-180 | SUS304 / SUS316L |
| 1000 | 1100 | 4 | 30-180 | SUS304 / SUS316L |
| 2000 | 1300 | 5.5 | 30-180 | SUS304 / SUS316L |
| 3000 | 1500 | 7.5 | 30-180 | SUS304 / SUS316L |
| 4000 | 1700 | 7.5 | 30-180 | SUS304 / SUS316L |
| 5000 | 1900 | 11 | 30-180 | SUS304 / SUS316L |
| 10000 | 2000 | 15 | 30-180 | SUS304 / SUS316L |
Note: The technical parameters of the mixing tank in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.

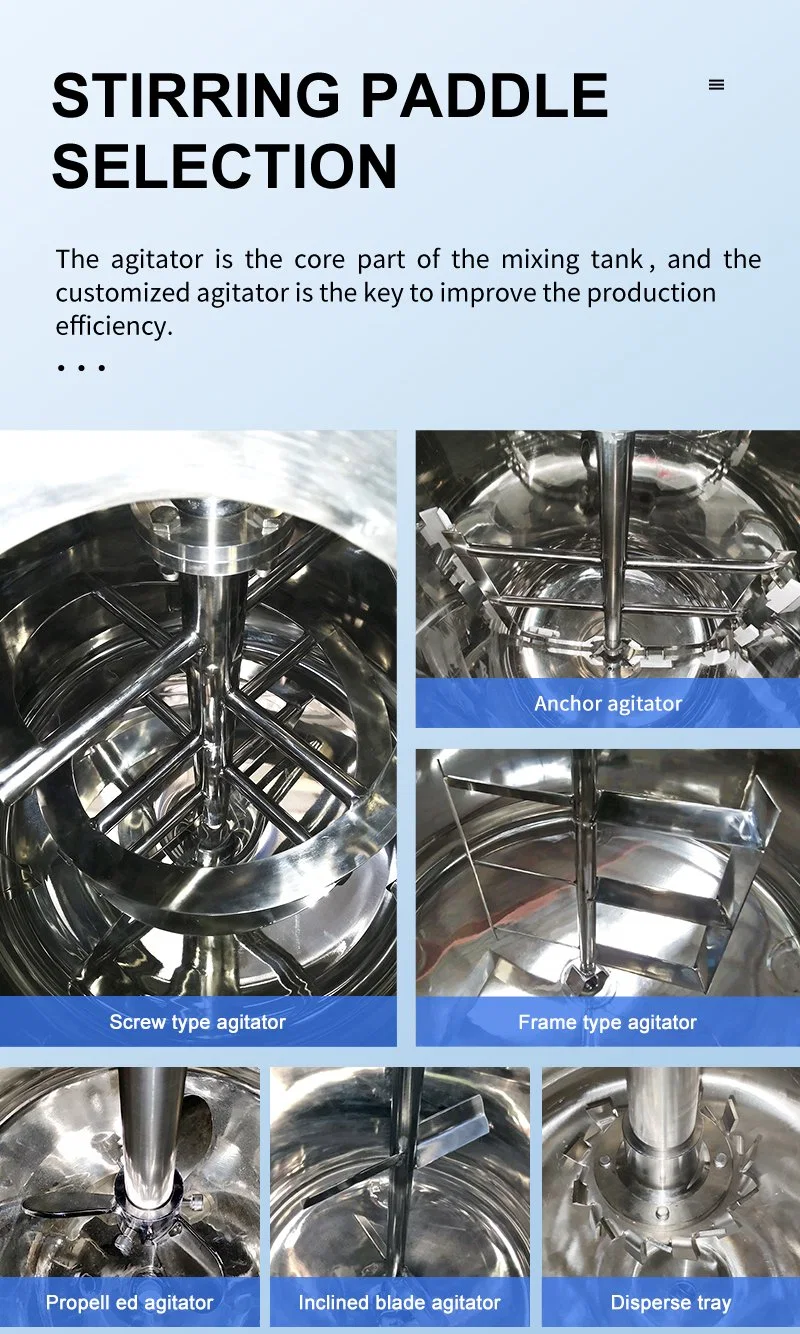

According to the material characteristics and the user's process requirements, our company will recommend the proper type of agitator and mixing speed. The agitators suitable for low viscosity and medium viscosity fluids include propelling agitators, turbine agitators, inclined blade agitators, Brumakin agitators, plate and frame agitators, three blade backward curved agitators, MIG agitators, etc. The agitators suitable for high viscosity and ultra-high viscosity fluids include anchor type agitator, frame type agitator, spiral belt type agitator and screw type agitator. The combined agitator can also be made according to the technological requirements of users.
