Ice Cream Cheese Chocolate Syrup Melting Aging Maturation Tank
- Type:
- Mixer
- After-sales Service:
- Onling Service
- Warranty:
- One Year
- Power Source:
- Electric
- Usage:
- Biscuit, Cake, Pizza, Bread, Chemical Industry
- Timing Device:
- With Timing Device
Basic Info.
| Customized | Customized | Voltage | 220V |
| Heating | Steam Heating or Electric Heating | Name | Ice Cream Cheese Chocolate Syrup Melting Aging Mat |
| Material | Stainless Steel 304 /316 | Capacity | 200L, 300L, 400L, 500L, 600L to 10000L |
| Insulation | Rock Wool /Polyurethane | Product Application | Liquid, Viscous Fluid, Liquid with Suspended Solid |
| Speed | 36rpm ,48rpm ,72rpm ,2900rpm | Tank Polish | Mirror Polish, Sub-Light |
| Tank Voltage | Make to Your Order . | Motor Power | 0.55--15kw |
| Working Life | 20 Years | Cleaning | CIP Cleaning Ball |
| Delivery | 10-15 Days After Get Your Reply . | Packing | Wooden Box . |
| Transport Package | Standard Wooden Box | Specification | CE |
| HS Code | 8479820090 | Production Capacity | 100 Units/Month |
Product Description

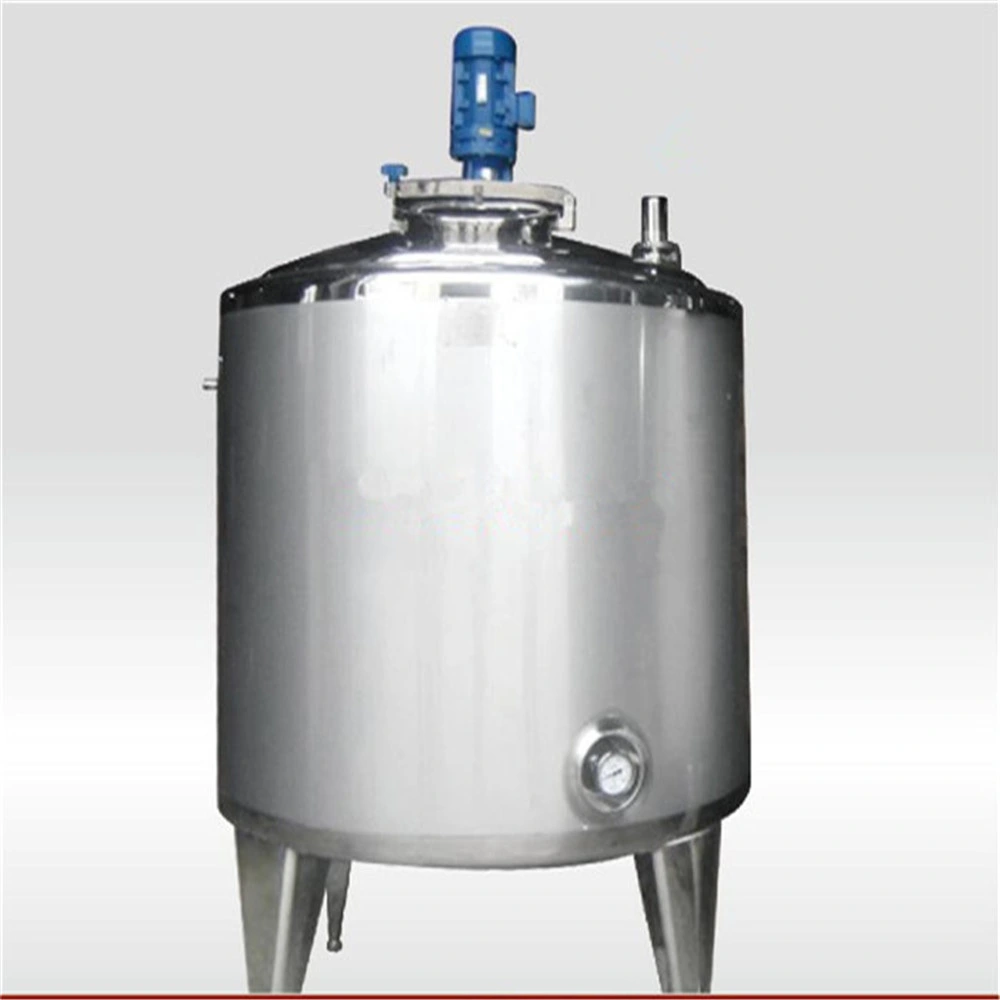

Ice Cream Cheese Chocolate Syrup Melting Aging Maturation Tank
Steam heating tank with mixer and blender, US $ 1 - 5000 / Set, Mixer, mixing&storage tank
Three-layered cooling and heating tank with mixer is mainly used for storing, mixing and heating liquid. It's the ideal mixing, heating and cooling equipment for chemical, food and beverage factory and pharmacy industry.

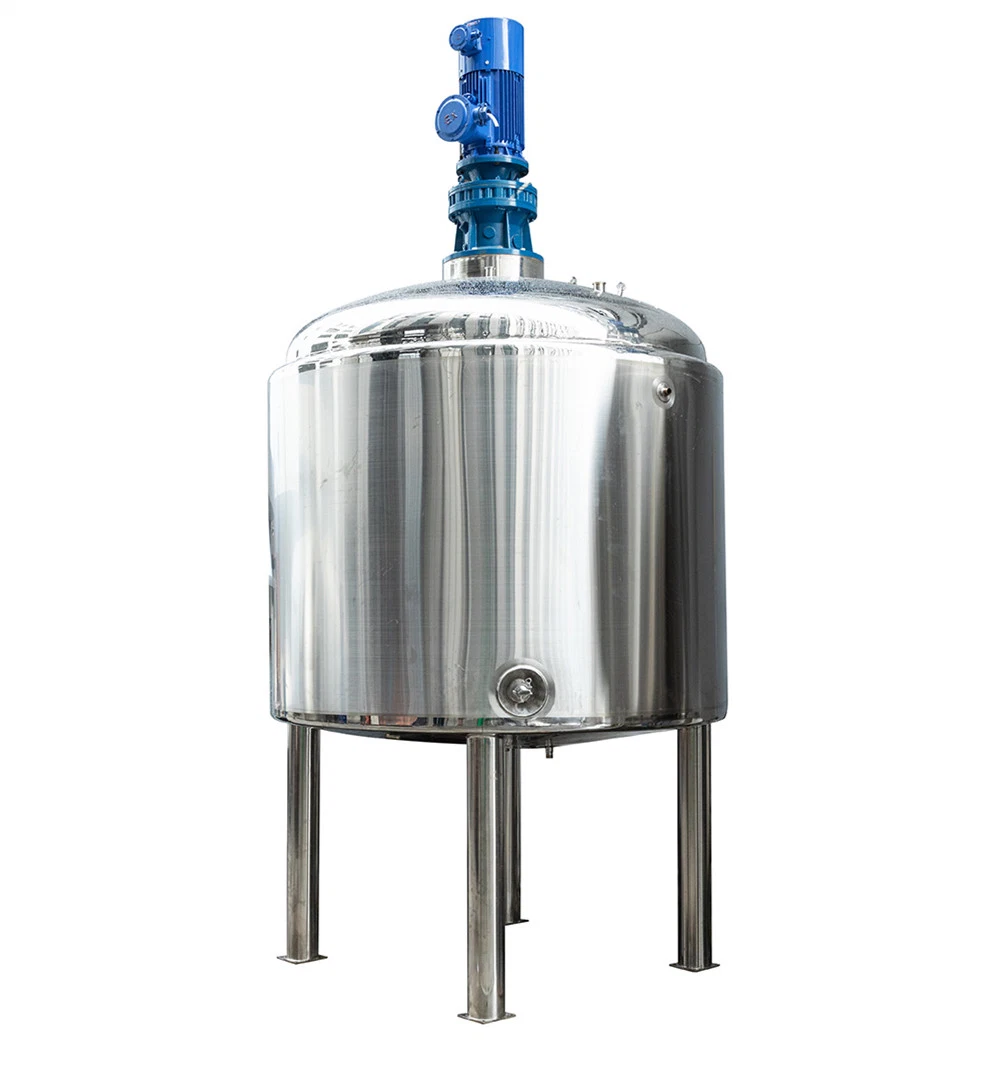

Sanitary Stainless Steel Heating Mixing Tank For Factory 2019
Material: Ss304
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm

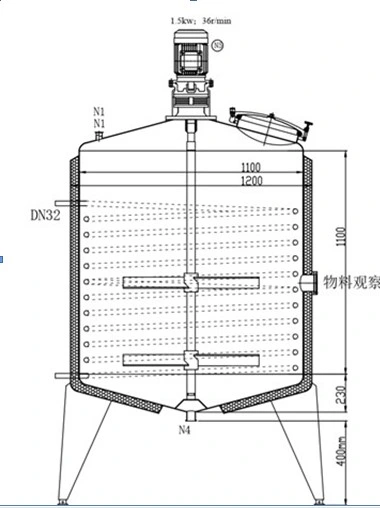

* Appearance: Ellipsoidal head top and down manhole
* Accessories:
(1) Manhole covers
(2) Charging/discharging hole at the bottom,
(3) CIP Cleaning ball
(4) Steam heating tube

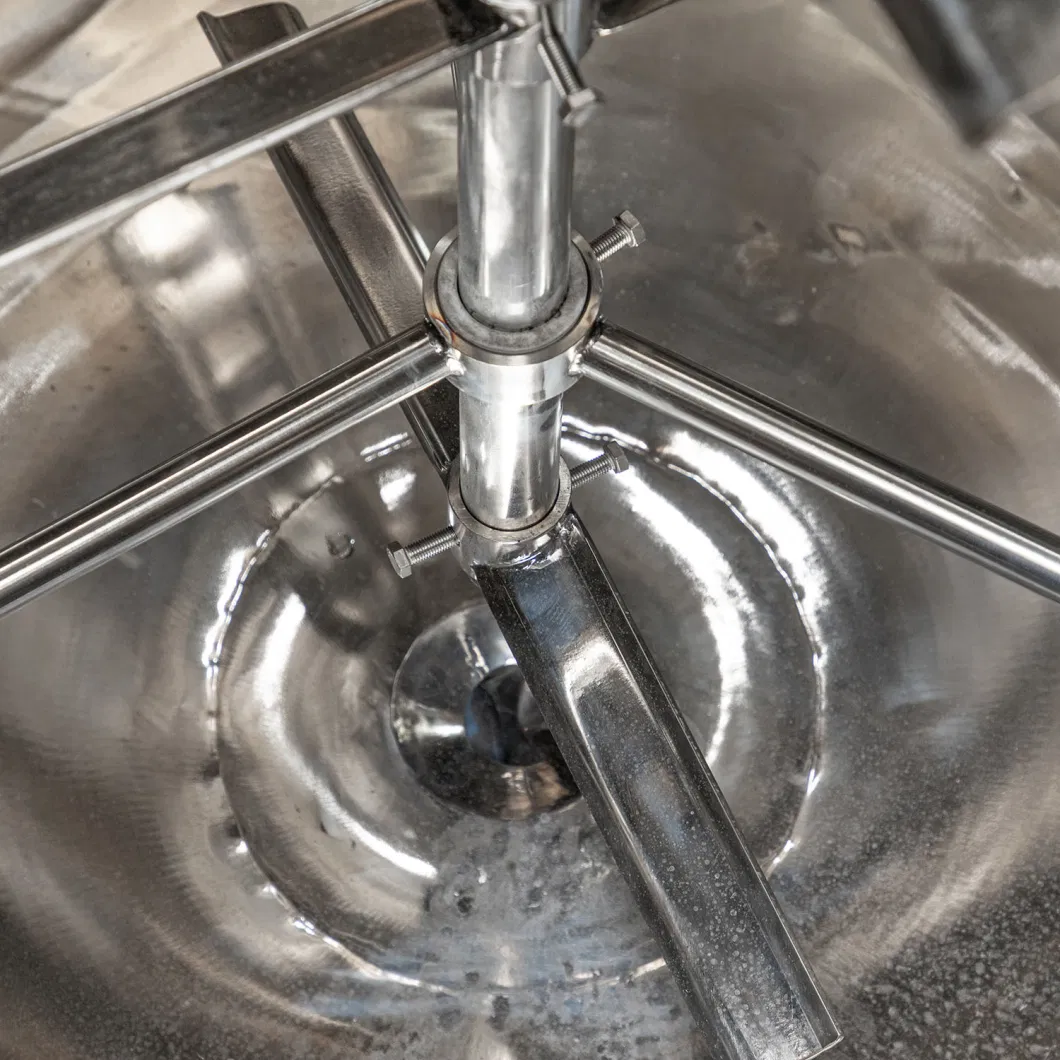

(5) Rack & blender etc.
(6) the electric motor (0.75KW, 380V, 50Hz)
Stainless Steel Mixing Buffer Holding Blending Vat For Mixing Processing
| Work Volume | Dimension of tank | Total height | Insulated layer | Diameter of inlet&outlet | Motor Power | Blending speed |
| (L) | (mmxmm) | (mm) | (mm) | (mm) | (kw) | (r/min) |
| 500 | 840*1000 | 2300 | 60 | 38 | 0.75 | Rotating 20,35,50, 100,500 Stepless speed reducer or inverter reducer available |
| 600 | 920*1000 | 2400 | 60 | 38 | 0.75 | |
| 700 | 990*1000 | 2400 | 60 | 38 | 0.75 | |
| 800 | 950*1220 | 2550 | 60 | 38 | 0.75 | |
| 900 | 1010*1220 | 2700 | 60 | 38 | 0.75 | |
| 1000 | 1060*1220 | 2700 | 60 | 51 | 1.1 | |
| 2000 | 1340*1500 | 2750 | 60 | 51 | 2.2 | |
| 3000 | 1410*2000 | 3500 | 60 | 51 | 4 | |
| 5000 | 1910*2000 | 3850 | 60 | 51 | 5.5 | |
| 10000 | 2300*2440 | 4500 | 60 | 51 | 7.5 | |
| 15000 | 2530*3000 | 5200 | 60 | 51 | 7.5 | |
| 20000 | 2640*3660 | 5800 | 60 | 51 | 7.5 | |
Ice Cream Cheese Chocolate Syrup Melting Aging Maturation Tank .
