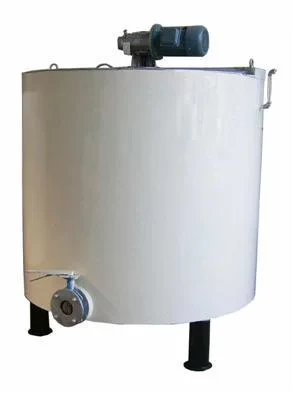

High Quality Chocolate Holding Storage Melting Tank
- After-sales Service:
- Online Technical Support
- Warranty:
- 1 Year
- Certification:
- CE, ISO9001
- Process:
- Mild Processing
- Power Source:
- Electric
- Automatic Grade:
- Automatic
Basic Info.
| Customized | Customized | Application | Candy, Chocolate |
| Main Axle Rotating Speed | 22.5 | Maximum Capacity | 1000 |
| Electrical Heating Power | 7.5 | Main Motor Power | 1.5 |
| Specification | SS304 | Transport Package | Wood Carton |
| Origin | China | Production Capacity | 50000PCS/Year |
Product Description

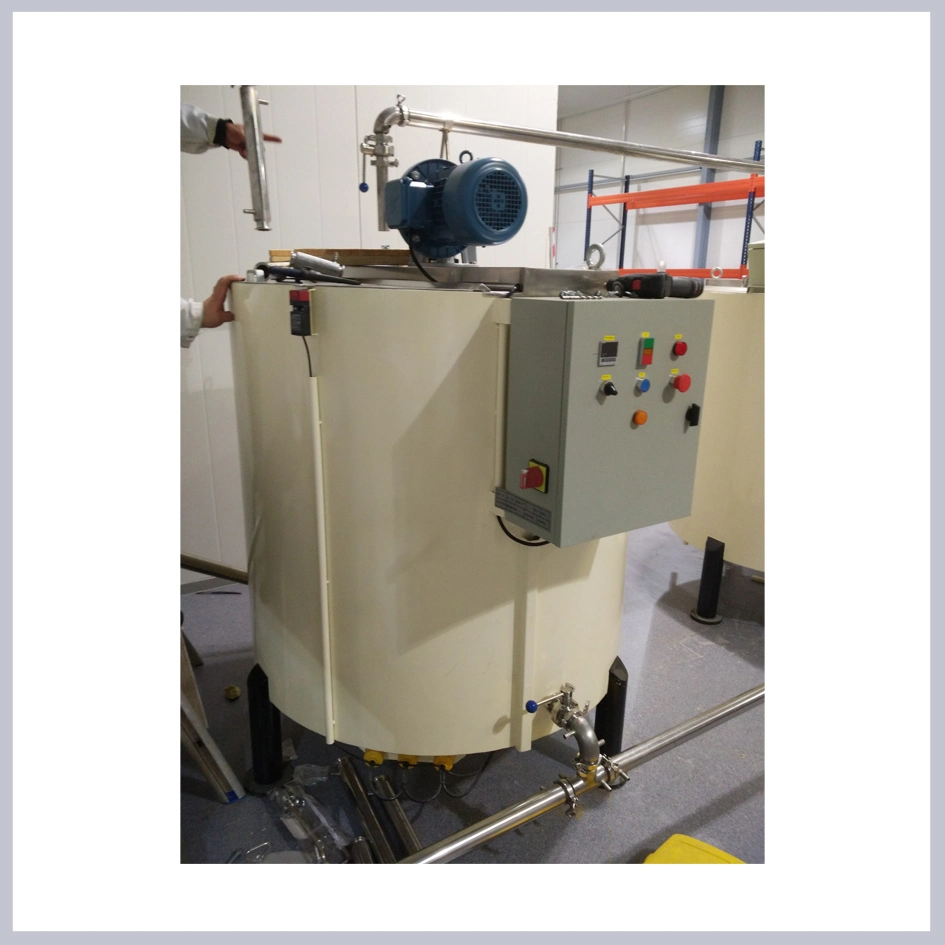

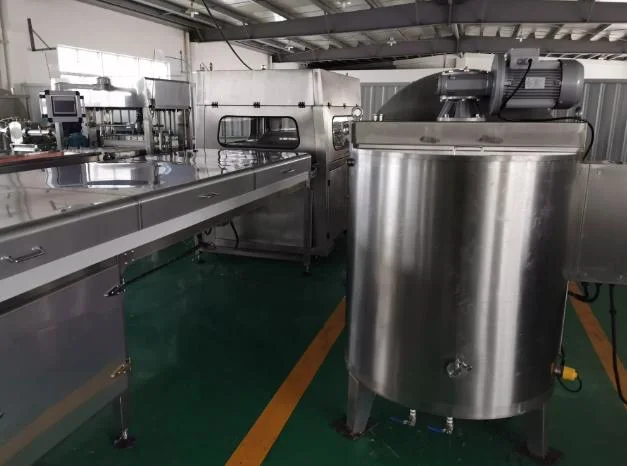

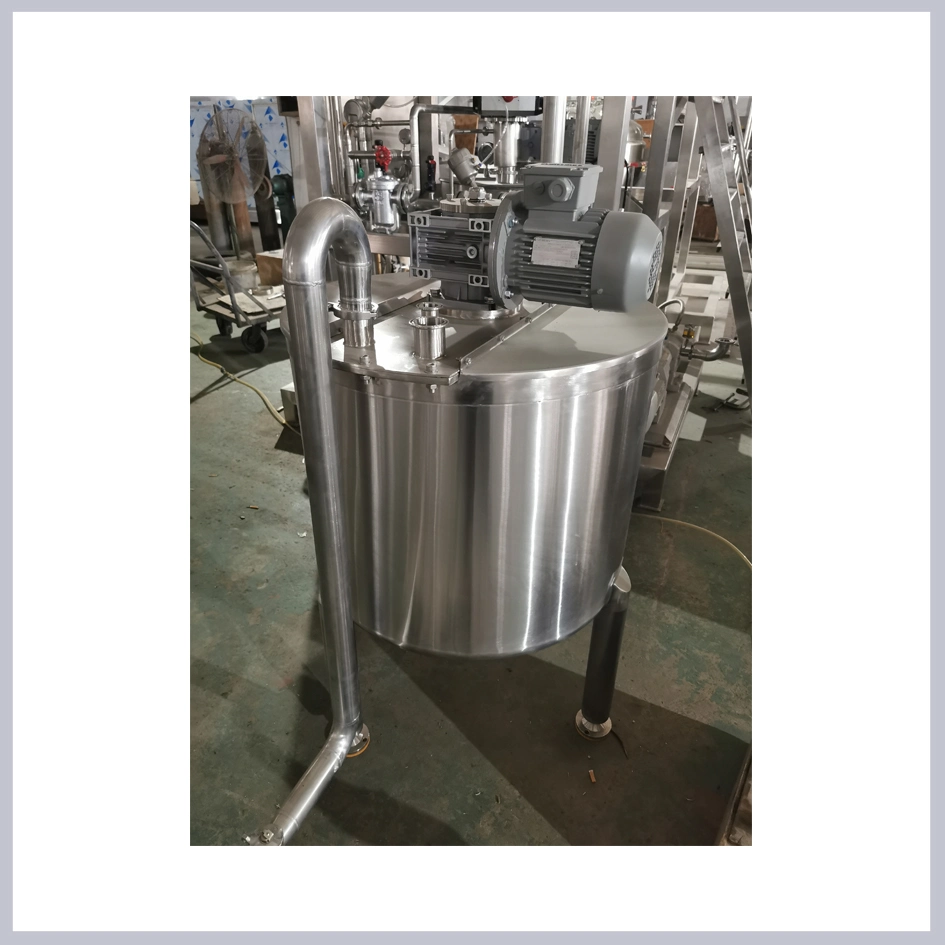

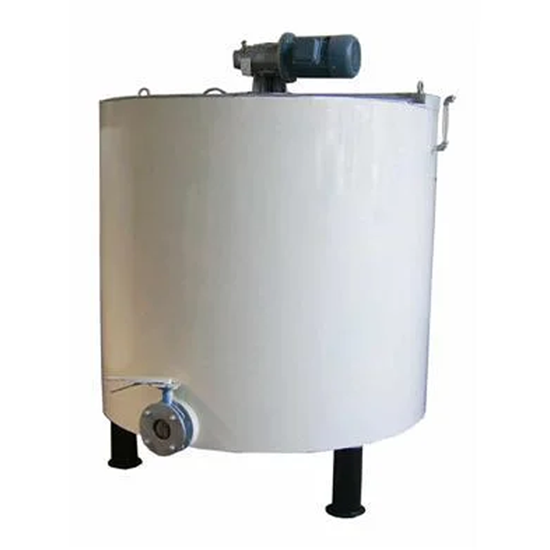

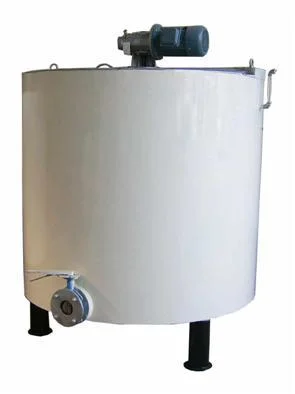

chocolate holding Storage Melting Heating tank
Application:
The holding tank is to store the fine grinded chocolate mass in constant temperature; it is with automatic temperature control system.2~10 tons holding tank can be produced under the customer's requirement.
our tank has different specification of volume. pls contact for more details.
the technical parameter as below is 1000L chocolate holding tank.
Technical Parameters:
| project | 1000 |
| Material | SS304 |
| Maximum capacity(L) | 1000 |
| Main axle rotating speed (rpm) | 22.5 |
| Main Motor power(kw) | 1.5 |
| Electrical heating power(kw) | 7.5 |
| Heat preservation power(kw) | 2.5 |
| Weight(kg) | 785 |
| Outside dimensions(mm) | φ1250×1700 |
| Heating type | Electric heating, hot water in the jacket layer. automatic temperature control.1.5" discharging valve. |
With Spare parts: 1pcs electrical heatings
