30L to 5000L Chocolate Mixing Tank Melting and Holding Tank
- After-sales Service:
- Online
- Warranty:
- One Year
- Certification:
- CE, ISO9001
Basic Info.
| Process | Thermal Processing | Power Source | Electric |
| Application | Ice Cream, Candy, Chocolate, Popcorn, Chips, Biscuit, Donut | Automatic Grade | Automatic |
| Capacity(L) | 100 | Customized | Customized |
| Weight(Kg) | 1500 | Motor Power(Kw) | 3 |
| Transport Package | Sea Transportation | Material | Stainless Steel |
| HS Code | 8438200000 | Specification | 1400*2500 |
| Origin | China | Production Capacity | 1000 |
Packaging & Delivery
| Package Size | 100.00cm * 100.00cm * 100.00cm |
| Package Gross Weight | 500.000kg |
Product Description

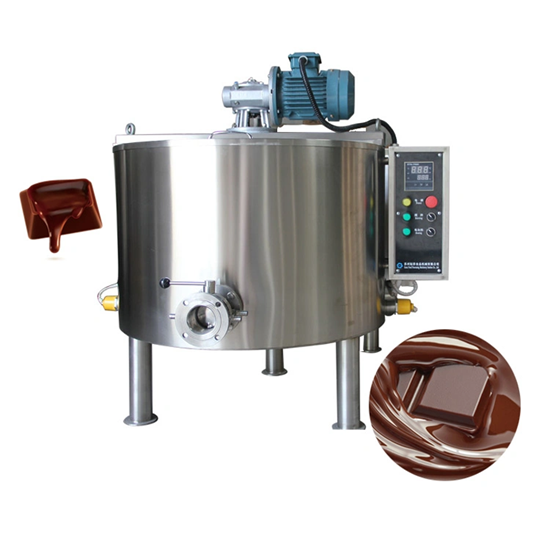

Chocolate Storage Tank
Product Description
Chocolate tanks are a crucial step in chocolate production - between the tempering and final molding phase. If you want delicately molded chocolates, the chocolate must be kept at the correct consistency and temperature. A highly advanced chocolate tank is the only way to achieve such results and exactly why you should choose GUSU as your machine suppliers.
From 100L to 5,000L and higher in the standard range of vertical tanks. Larger capacity vertical and horizontal tanks can be built to suit your specific need. These fully China made storage tanks are used to store finished liquid masses like chocolate, at a required temperature and are continuously moved by means of the stirrer in one direction. A heavy duty stirrer guarantees a continuous agitation of the mass. Water temperature in the jacket is controlled by means of a thermostat control which is governed by the setting on the control panel.
chocolate Storage tank comes in a sleek stainless steel design. Its thick shell makes it highly durable and built to last years on your production line.
Technical Parameters
| Model | Volume(L) | Motor Power(KW) | N.W.(kg) | Overall Size(mm) |
| BGW100 | 100 | 0.75 | 150 | φ700*1250 |
| BWG200 | 200 | 0.75 | 180 | φ800*1250 |
| BWG300 | 300 | 0.75 | 200 | φ900*1250 |
| BWG500 | 500 | 0.75 | 600 | φ1000*1380 |
| BWG1000 | 1000 | 1.5 | 1000 | φ1220*1850 |
| BWG2000 | 2000 | 3 | 1500 | φ1400*2500 |
| BWG3000 | 3000 | 5.5 | 2000 | φ1700*2500 |
| BWG5000 | 5000 | 7.5 | 3000 | φ2000*2710 |
