Magnetic Stirrer

Contact Now

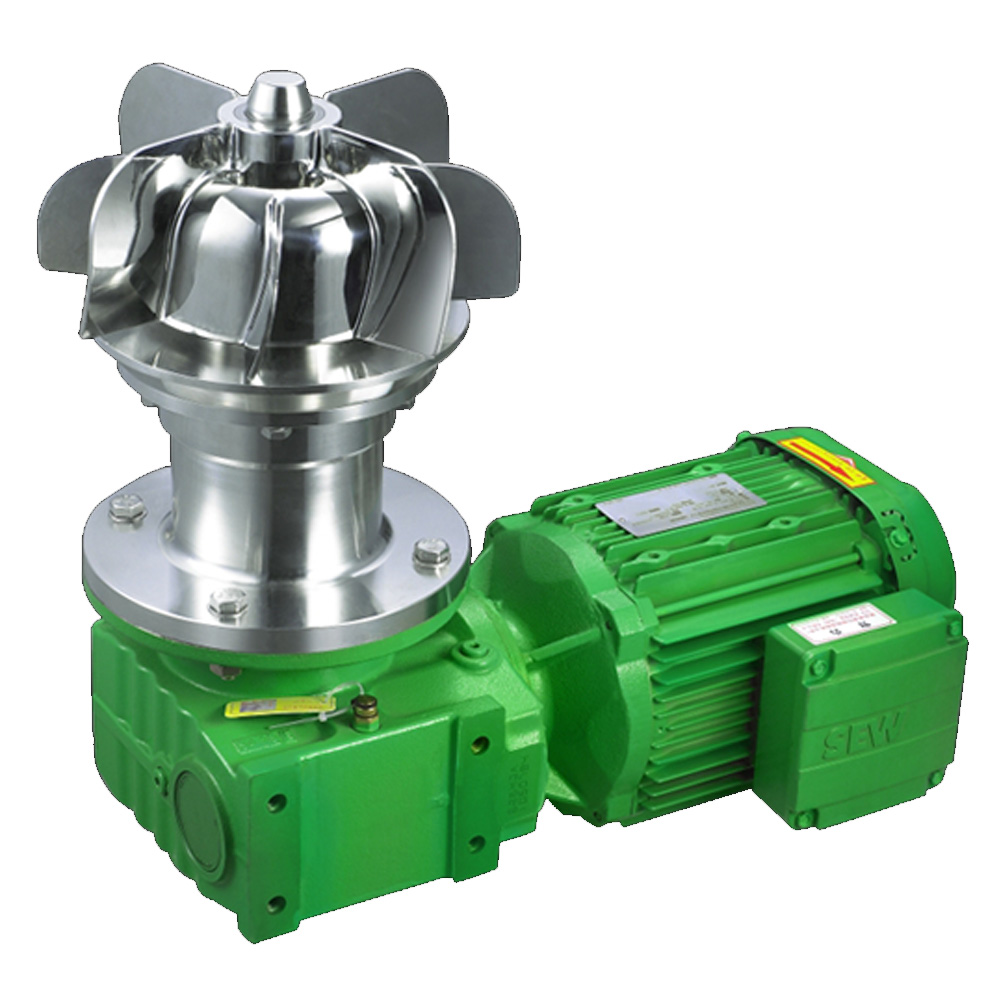

The impeller is driven magnetically and does not require a bearing through the tank wall to drive the impeller. This eliminates the possibility of leakage from the shaft seal. At the same time, no shaft seal maintenance is required. The open structure of the impeller represents an important improvement in the design of magnetically driven agitators.

  • It completely avoids the presence of internal bubbles
  • The CIP online cleaning process is safer and more effective
  • The SIP online steam sterilization process is simpler
  • All liquid contact surfaces can be fully drained
  • Bottom installation: low liquid level mixing, easy maintenance
  • Magnetic drive: no mechanical seal, reduced risk of contamination
  • Excellent stirring performance

The MT magnetic stirrer is designed according to GMP-requirements.

The MT magnetic stirrer design represents the culmination of more than 25 years of engineering and design experience for this equipment.

The concept of aseptic design, the basis of the MT magnetic stirrer, will greatly increase the applicability, cleanability and sterilization of the stirring process.

Impeller replacement
High shear and low shear impellers can be replaced with each other according to material requirements

Magnetic Stirrer

Low speed low shear force agitator

There are 8 specifications for selection according to different capacities

Low shear force, speed 50-800RPM

Used for ordinary liquids, chemical reaction stirring

Suitable for stirring shear-sensitive materials at low speed

Magnetic Stirrer

 High-speed high-shear impeller
Aseptic design
Speed ​​up to 1400-2800RPM
Suitable for poorly soluble media, such as emulsion dissolution, small particle solid dissolution

Magnetic Stirrer

Dimensions

Magnetic Stirrer Magnetic Stirrer
model L L1 H H1 H2 H3 D2 D1/welding plate/container opening diameter
MSD90 334 63 290 158 80 129 139 92
MSD120 346 63 294 162 88 129 139 92
MSD155 371 63 309 177 109 129 139 115
MSD200 411 63 365 233 139 139 156 180
MSD220 463 75 374 233 139 150 156 180
MSD240 463 75 386 245 140 150 179 190
MSD270 463 75 386 245 140 150 179 190
MSD320 463 75 431 290 160 150 179 235

Magnetic Stirrer
