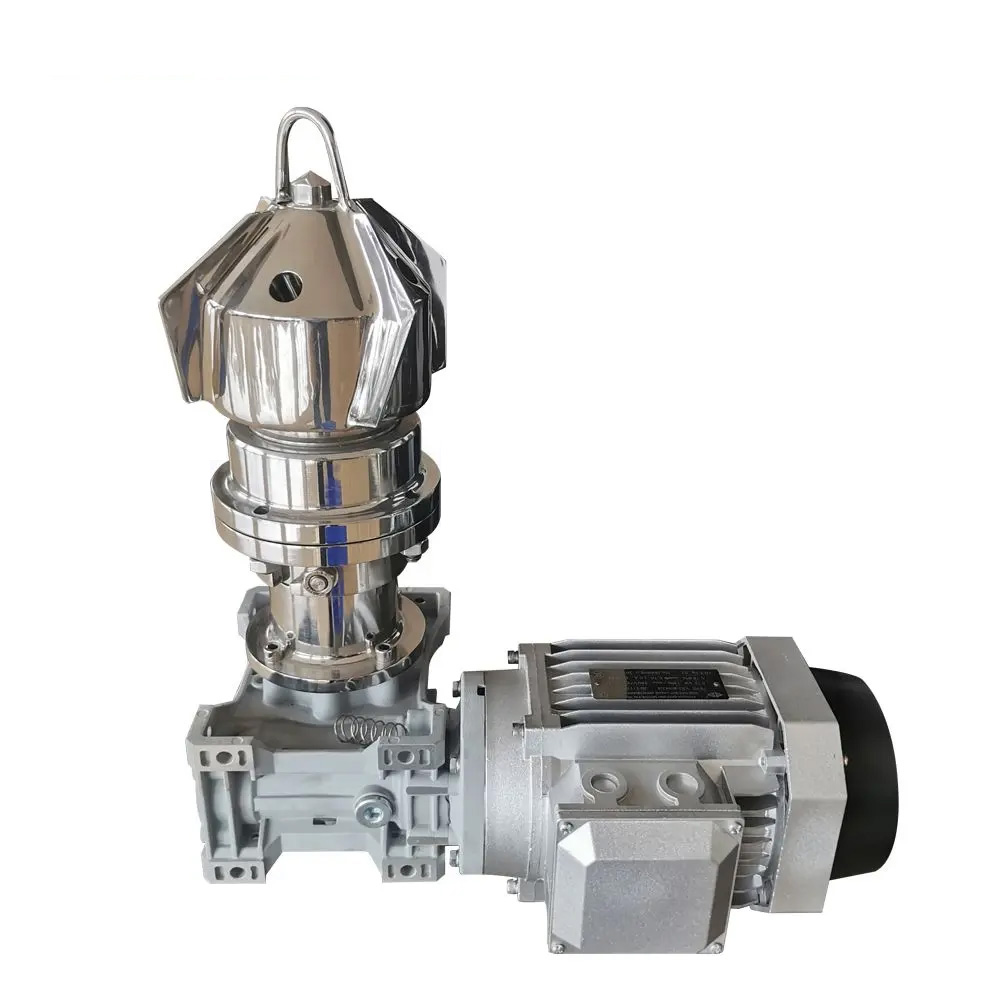

Aseptic magnetic drive agitators are widely used in the Pharmaceutical and Biotech Industries in ultra-sterile applications including mixing, diluting, maintaining in suspension, thermal exchange, etc.They provide absolute assurance that there can be no contact between the tank internals and the outside atmosphere due to the fact that there is no penetration of the tank shell and no mechanical shaft seal. Total tank integrity is assured and any risk of toxic or high value product leakage is eliminated.

    Features and benefits:

    • No penetration of the tank shell and no mechanical shaft seal allow

    an aseptic design avoiding any risk of contamination or leakage

    • Sanitary design to meet current pharmaceutical requirements

    • 7 Different models for different vessel volumes and agitation levels

    • Allow low minimum working volumes not feasible with

    traditional mixers

    • Suitable for viscosities up to 1000 cP

    • Suitable for CIP or SIP in situ or autoclave

    • Able to be removed quickly and easily - a major advantage

    when sterilizing in an autoclave or sharing a single drive

    unit mechanism between vessels

    • Using an inverter speeds from 50 to 450 RPM are possible

    allowing a range of agitation levels from gentle to vigorous

    • Bottom mounting means that the top of the

    vessel is left clear for easy access

    • The specially designed impellor geometry

    ensures optimized agitation with a very low

    shear rate. Additionally the blade design is

    such that a proportion of the cleaning fluid

    is directed through the head
