Basic Info.

Application Fields	Vegetable Processing Plant	Type	Cooking Equipment
Surface Finish	Matt Polish or Mirror Polish or 2b	Material	SS304 or SS316L
Operate Pressure	ATM or 0-10bar	Capacity	100- 30000L
Construction	Vertical Type	Operate Temperature	0-200degree

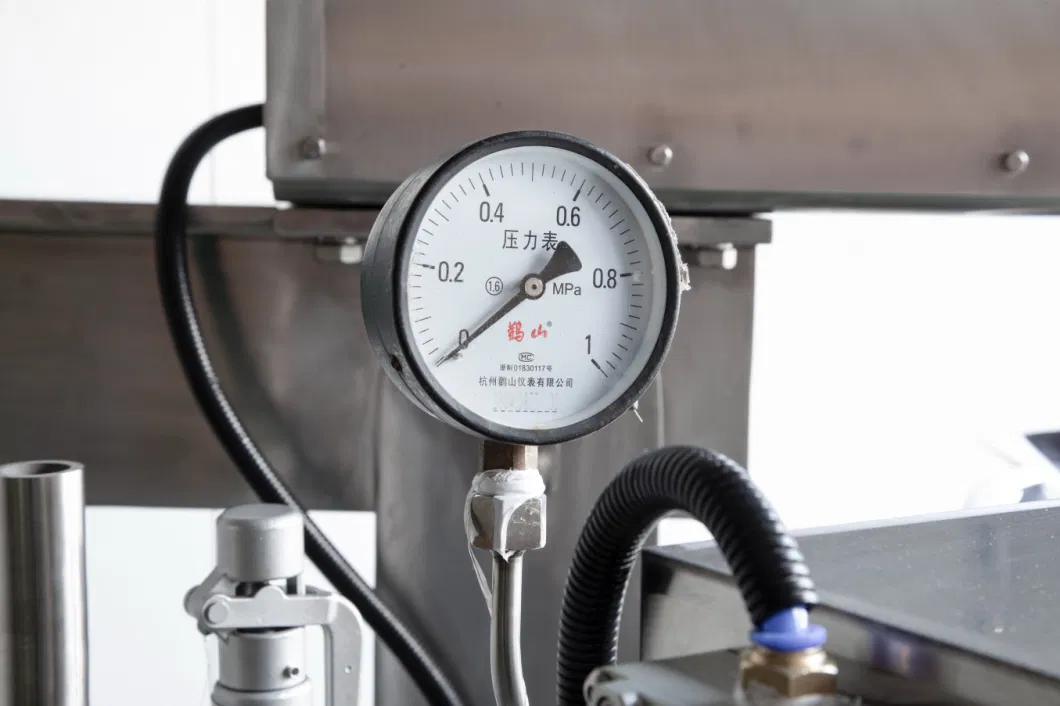

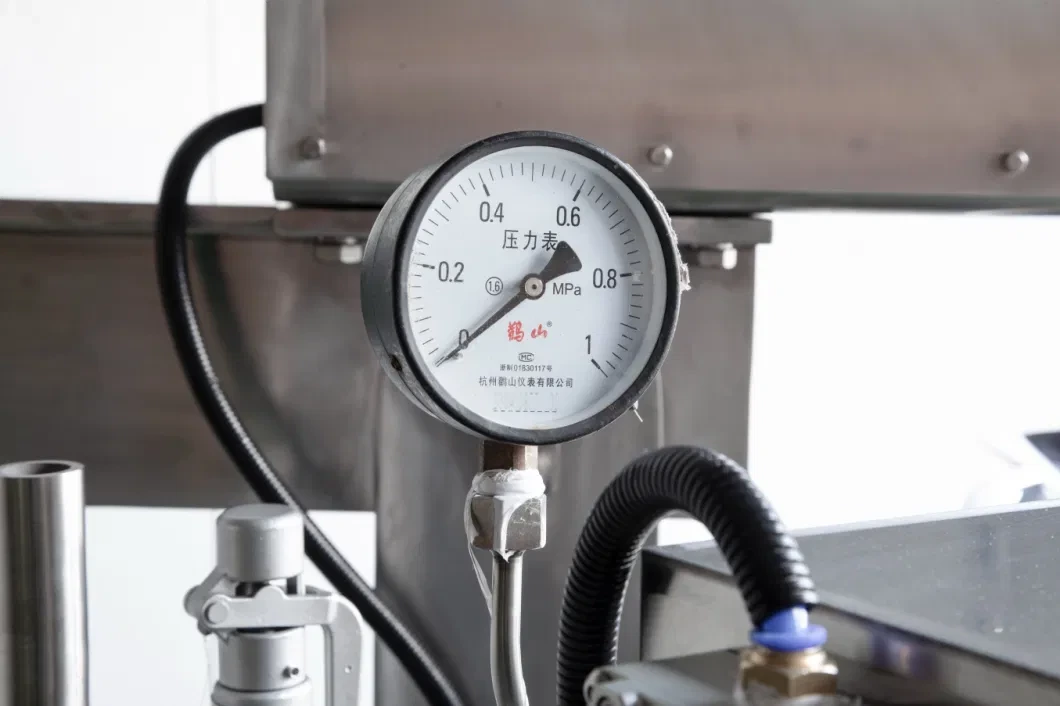

Optional 1	Vent Filter ,Sight Glass ,Pressure Guage	Component	Manhole ,Inlet/Outlet
Agitator	Top Entry or Bottom ,or Side Entry	Optional 2	Control System Jacket ,Insulation
Production Capacity	50 Set/Sets Per Month	Transport Package	Plywood Case or Steel Frame

Packaging & Delivery

Package Size	1000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight	500.000kg

Product Description

Stainless Steel Double jacketed kettle series strictly tally with GMP General principles'(1998 Revised Edition), and is designed ,manufactured and accepted according to the requirements of GB150-98 Steel Pressure Vessel or JB/T4735-97 Steel Welding Normal Vessel.

1. Heat preservation material of the Double jacketed kettle adopt high-temperature resistant and anti-aging polyurethane blister or per cotton.

2. Joints adopt international general ISO package chuck,inner container adopts imported stainless steel SUS 304 or SUS316, internal surface polishing.

3. Double jacketed kettle Orifice is set with level gauge (static-Pressure type, capacitance type, non-contac type, ultra-sonic type and glass tube), air respirator, thermometer (digital display type or dial plate type), CIP cleaning mouth, SIP sterilizing mouth, liquid entrance-exit gate and sanitary inlet.

4. Double jacketed kettle Volume Specification:100L-30000L or to be designed and manufactured at customers'actual request

According to your product, we can configure with different mixing tool, if low viscosity product, need high speed mixer, if high viscosity product, usually high speed mixer with low speed mixer to meet different process.
To choose the right machine will greatly advance your production efficiency and production quality.
The stainless steel mixing tank can engineer heating, cooling or vacuum or other process
we have rich practicel data for different product, with the data can help customer to choose the right machine.
The volume of the mixing tank from 50-10000L
Material: sus304 or 316L stainless steel
the closed structure prevent the dust fly or liquid splash.

Jhenten Double jacketed kettle Quality Control :

1.The raw materaial plate was anlysised by our material anlysier to assure the quality

2.The welding is argon arc weld(TIG) to avoid plate's oxidized

3.After welding the the inner tank ,we will make a full water pressure test to check the welding joint . After welding the jacket ,the full water pressure test be done for jacket too

4.After finishing the surface finish ,our people will make a surface roughness testing to assure the Ra data

5.After agitator installment ,we will operate it to assure the function is good

6.The nozzle's position 's confirm also is checked by our quality control people

Technical Parameters
Volume(L)	Agitator power(Kw)	Heating area (m2)	Working Pressure in jacket (Mpa)	Agitator speed(Rpm)
50	0.37Kw	0.4	≤1MPa (According to customer requirements)	36
100	0.37Kw	0.6		36
200	0.55Kw	1.0		36
300	0.75Kw	1.44		36
400	0.75Kw	1.65		36
500	1.1Kw	1.9		36
We can customize the equipment according to customer requirements.

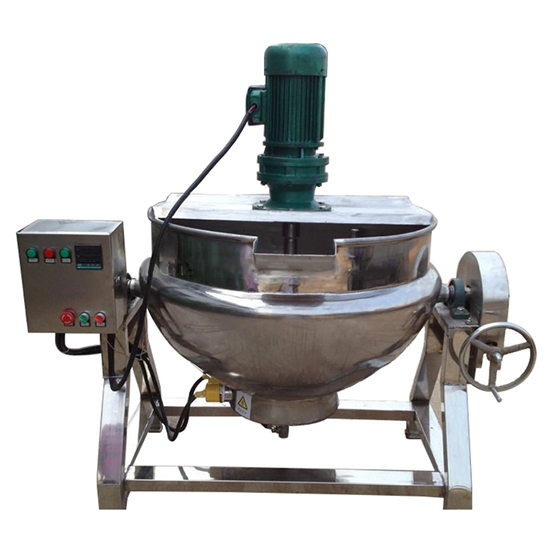

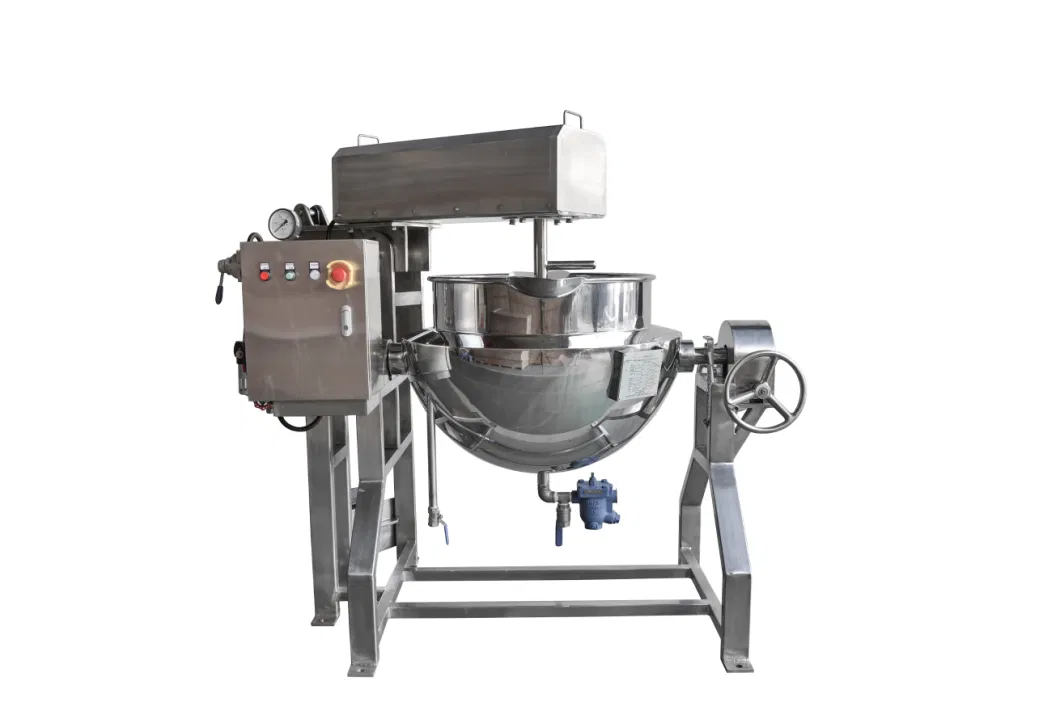

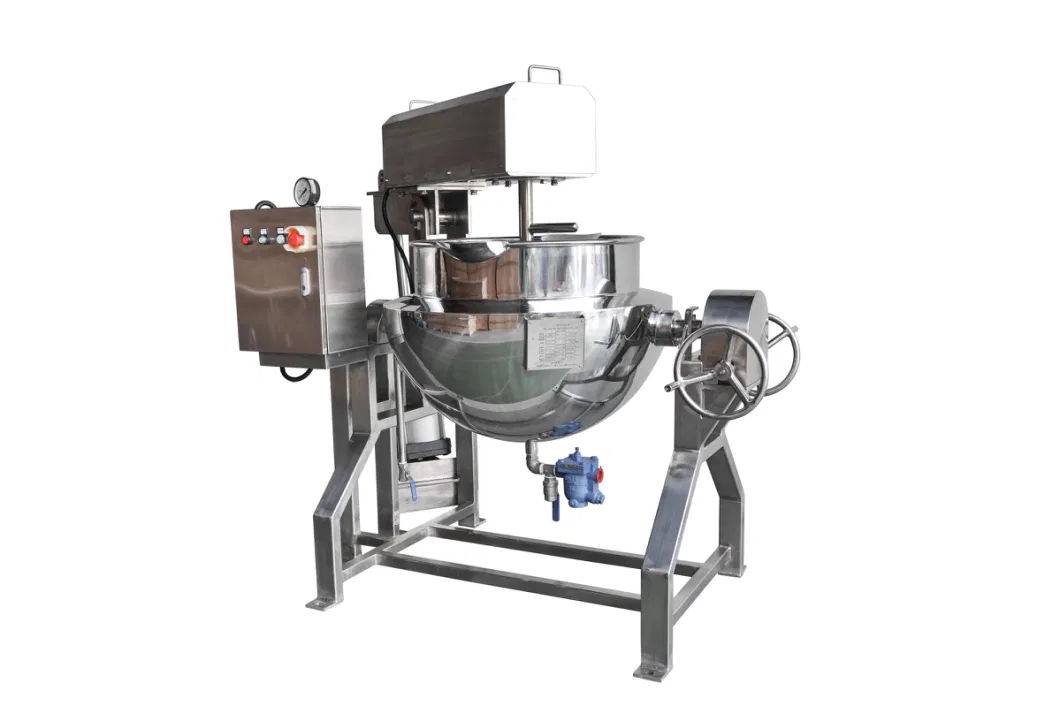

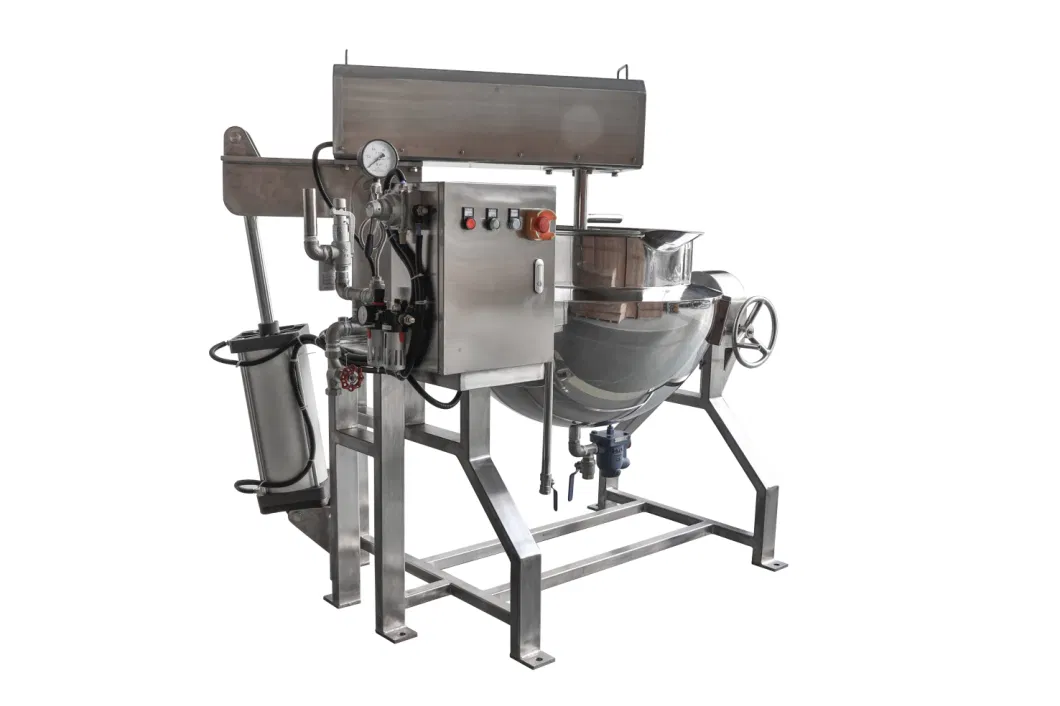

JTRZG Food grade Stainless steel tilting pot cooking heating mixing industrial cooker jacket kettle
material	SS304 or SS316L
Volume	50L-2T(Customized)
application	Food, pharmaceutical industry, chemical industry, etc
Surface	Mirror or matte, Ra<0.4μm
Structure	Tilting type
	vertical type
Heating mode	electric heating	gas heating	steam heating

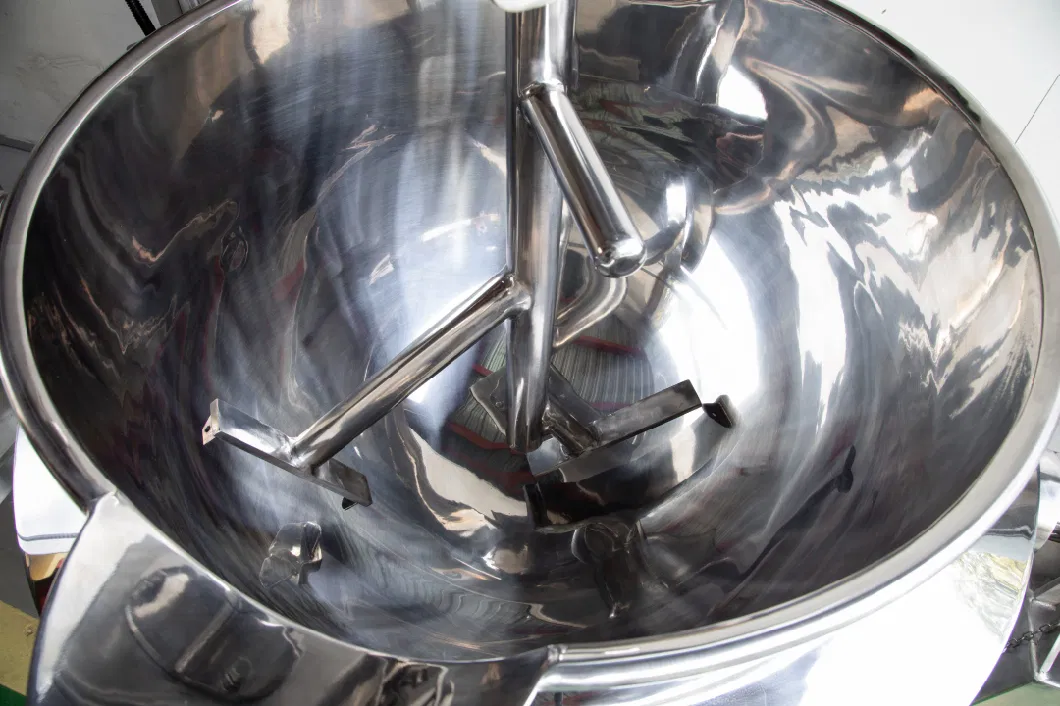

Agitator type	Paddle Mixer
	Scraped Wall
Mixer speed	low speed
	0-43RPM
PARTS DETAILS	1.half-cover
	2.Various types of CIP cleaners

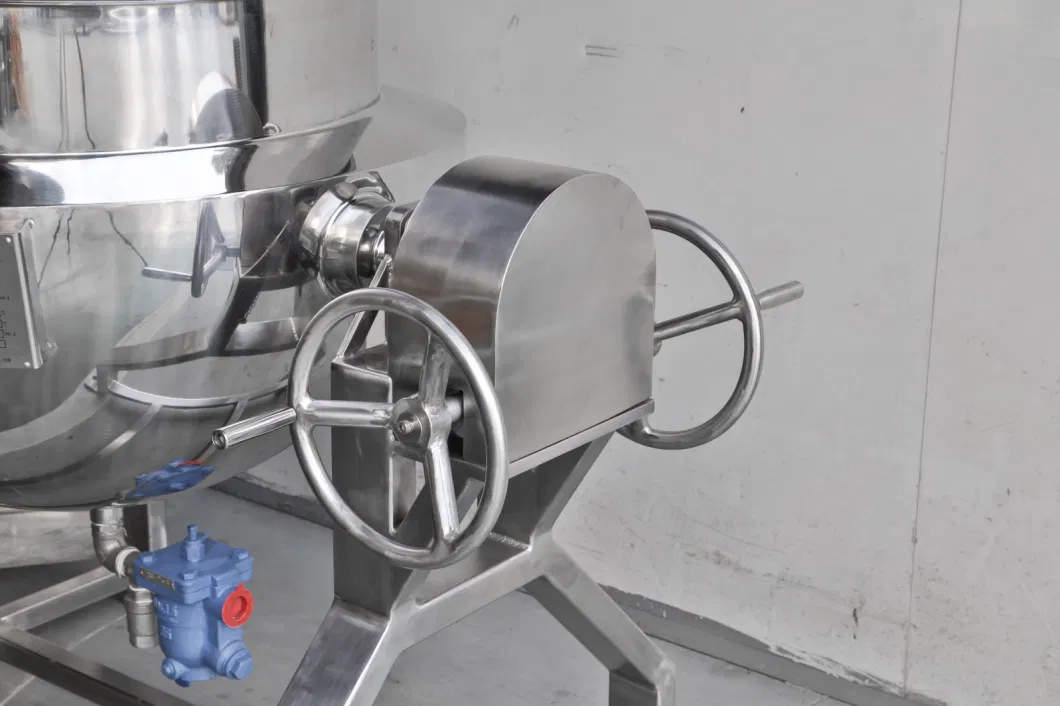

	3.Tilting type or vertical type
	4.Inlet and Outlet sanitary valve.

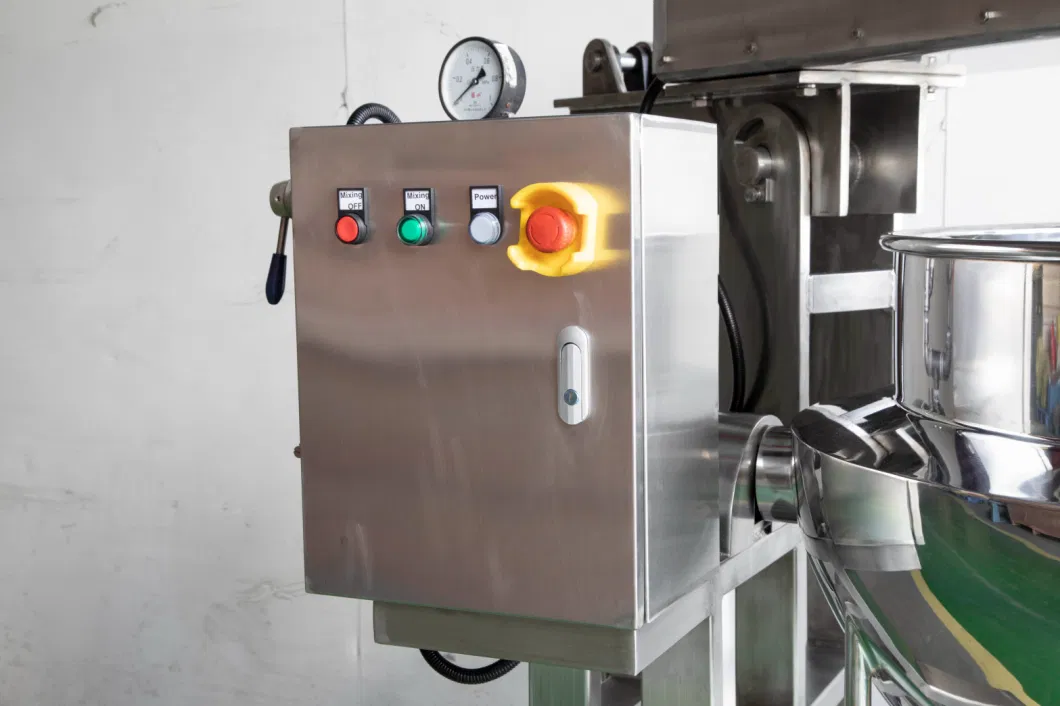

	5.Electric box
	6.Thermometer (According to customer requirements ).
