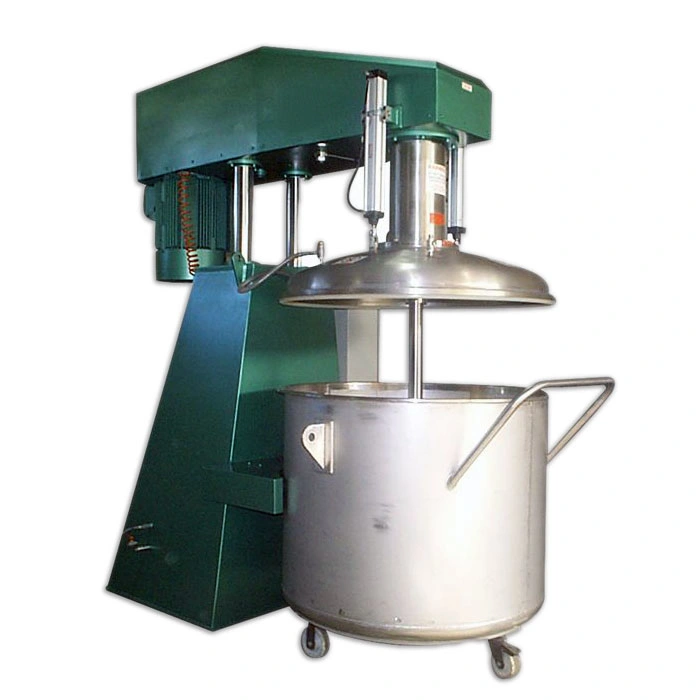

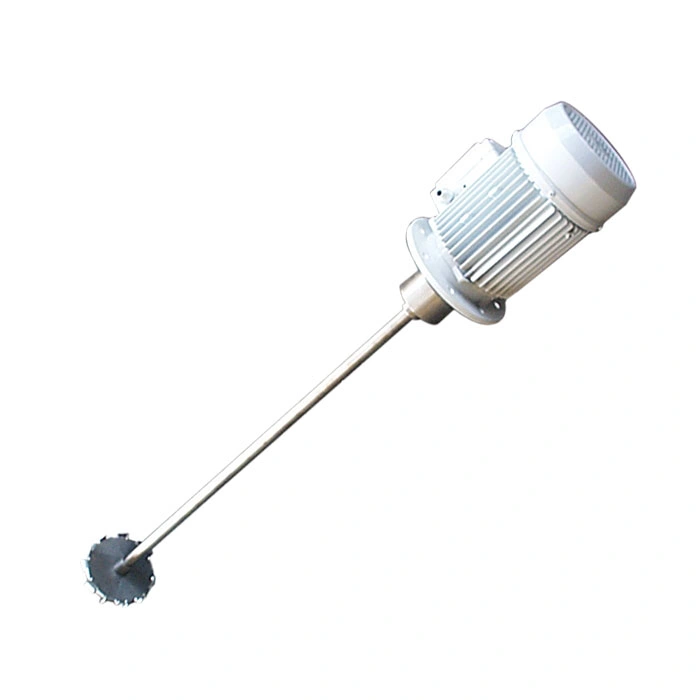

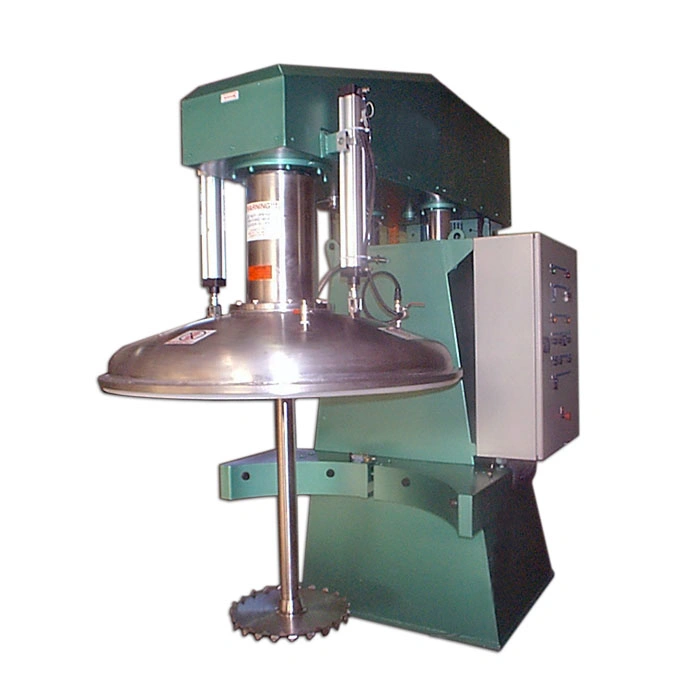

High Speed Disperser Machine for Water Paints

INTRODUCTION:
High Speed Disperser is ideally designed to meet the demands of a broad spectrum of industrial applications. The PerMix PD series High Speed Disperser is featured by its ease of operation and high efficiency to reduce a lot of cost and operation time, and has proven itself by providing the most economical solutions to a variety of dispersing problems.


HIGH SPEED DISPERSERS FOR SPECIFIC USES:
High Speed Disperser produces an intense motion which rapidly removes air or gases from the product. The built-in vacuum cover lifting device enables you to adjust the PD series High Speed Disperser disc height without breaking the vacuum.

High Speed Disperser exclusively combines a slow running element with a dissolver impeller enables you to produce batches of excellent quality and uniformity, which are twice as large as those produced in a conventional system. This mixer can handle high viscosity products (up to 600, 000 CPS) or large quantities of solids.

A vacuum version of the TWIN-SHAFT High Speed Disperser is also available as well as different types of slow running elements.

High Speed Disperser is a practical and economical way to produce small and medium sized batches. A counterweight helps elevate the mixer, which can then be locked in any desired position. As an option, the elevating system can be manually, electro-mechanically or hydraulically controlled.

High Speed Disperser is used for R&D purposes by performing each of the previously mentioned functions.


SPECIAL FEATURES:
It is able to customize accessories for PerMix PD series High Speed Disperser to meet your specific needs. For example:
1. A swiveling head which can serve several stationary drums
2. A quick locking vacuum cover which allows easy dismantling
3. An adjustable safety cover which protects against splashing and dust
4. An impeller system with a static toothed ring for very high shearing forces
5. Mixing drums
6. Double-jacketed mixing drums
7. Individually driven scrapers


APPLICATIONS:
Applications of the High Speed Disperser include but are not limited to:
1. General: Dispersing, suspending, emulsifying, dissolving, homogenizing, mixing and breaking down agglomerates of high viscous materials (up to 300, 000 CPS)
2. Paints, varnishes and printing inks: Preparing paint batches, carbon paper paint, artist's paints, priming and rust removing paints, fillers, dispersion and coating paints, varnish pastes, printing inks, resin solutions, textile printing inks, etc
3. Plastics: Preparing all types of PVC, PU pastes, color concentrates and plastic putties
4. Adhesives: Preparing rubber, neoprene, resin and other types of adhesives
5. Chemicals: Preparing filler dispersions, coating materials, insulation materials, bitumen based sealing materials, greases and lubricants

1.      (*) Specific working volumes can be offered according to customer's requirement.
2.      All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.
3.     Reserves the right to modify the design without notice.
