High Speed Disperser Hydraulic Lifting
- Material:
- Ss304/Ss316L
- Type:
- Disperser
- Condition:
- New
- Object:
- Paint
- Usage:
- Industrial
- Installation:
- Vertical
Basic Info.
| Bearing | NSK | Product Type | Cosmetic |
| Specification | EBF-4------EBF-55 | Transport Package | Wooden Case |
| Production Capacity | 40-12000L | HS Code | 8479820090 |
Product Description

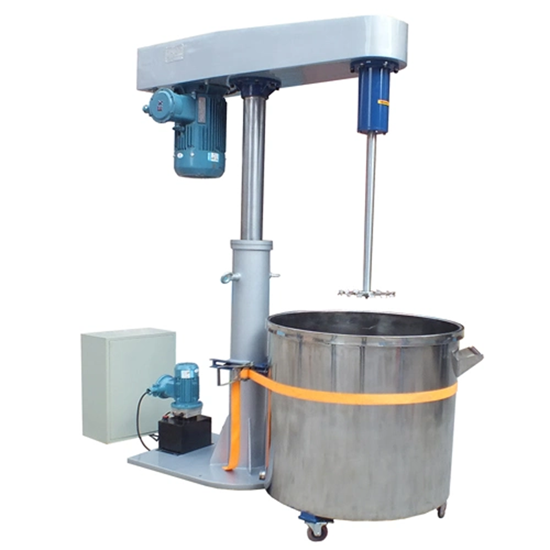

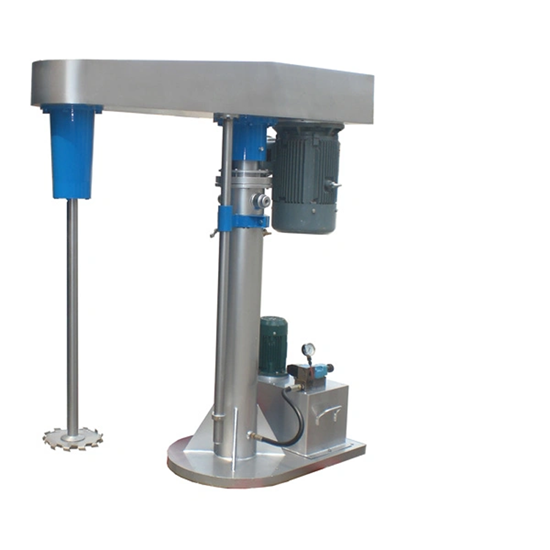

High Speed Disperser
Describtions:
Paint Mixer ( high speed mixer / disperser / dissolver ) is suitable for batch production, it is apply to all kind of liquid to pre-mix, disperse, color matching, etc.
Features:
1. Hydraulic lifting, the frame can turn around flexibly.
2. Can match with cover, incase of material splashing or flying and volatilization of solvent based product during working.
3. Less air absorption during working.
4. Paint Mixing Machine can blend and dissolve product quickly.
5. With inverter, various speed control, low noise and long-time continuous production.
6. Stable performance, high efficiency.
7. Paint Mixing Machine with clamp or belt is optional.
8. Motor can be explosion-proof, and the dispersing tank can be vacuum or seal.
9. Paint Mixing Machine can be hydraulic lift or pneumatic lift.
10. Type: Floor type and platform type.
11. One machine can serve several tanks.
| Main Power (kw) | Rotation Speed (rpm) | Diameter of Disc (mm) | Stroke (mm) | Pump Power (kw) |
Weight (kgs) |
| 4 | 1440 | 100-200 | 700 | 0.75 | 700 |
| 7.5 | 1440 | 200-300 | 900 | 1.1 | 1000 |
| 11 | 1440 | 200-300 | 900 | 1.1 | 1000 |
| 15 | 1440 | 200-300 | 900 | 1.1 | 1000 |
| 18.5 | 1250 | 300-400 | 1200 | 2.2 | 1500 |
| 22 | 1250 | 300-400 | 1200 | 2.2 | 1500 |
| 37 | 1250 | 300-400 | 1200 | 2.2 | 1800 |
| 45 | 1250 | 400-500 | 1500 | 2.2 | 1800 |
| 55 | 1250 | 400-500 | 1500 | 2.2 | 2000 |
