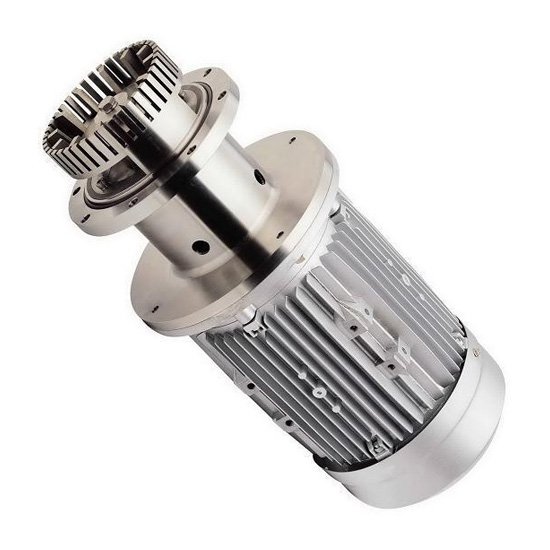

High Shear Emulsification Head
- Application:
- Liquid with Suspended Solids, Liquid
- Mixer Type:
- Homogenizer
- Working:
- High Speed Mixer
- Stirring Type:
- Forced
- Application Area:
- Chemical
Basic Info.
| Mixing Drum Shape | Conical | Layout Type | Verticle |
| Operating type | Cycle Operating | Additional Capabilities | Milling |
| Impeller | Stator/Rotor | Condition | New |
| Capacity Range | 50 - 15,000 Liters | Ex-Proof Version | Available |
| Motor | Local Brand, Siemens, ABB | Polishing | Dull Polishing; Mirror Polishing |
| Transport Package | Wooden Crates | Origin | China |
| HS Code | 8479820090 | Production Capacity | 1000 PCS/Year |
Product Description
Price of Steel Homogenizer Industrial Emulsifying High Shear Mixer with Hydraulic Lifting
INTRODUCTION:
High Shear Pump is a high shear mixer for inline or continuous operation. In the Inline process, the mixer is installed outside the tank. This makes it easy to be built into an existing production line with normal inlet/outlet connections. In the case to deal with liquid with a low viscosity, the PC series High Shear Pump can pump the liquid without an additional pump. That is why it is also called High Shear Pump. The PC series High Shear Pump can be used to deal with the product in a single pass or with several circulations to make the product better.
MULTI-STAGE HIGH SHEAR PUMP:
(usually three-stage) High Shear Pump has three sets of stator/rotor systems to enhance its shearing performance. This design dramatically reduces processing time, and in some cases only one pass through the mixer can lead to satisfied products.
ADVANTAGES & OPTIONS:
High Shear Pump is featured for the advantages of:
1. Save your processing time by up to 90%
2. Increase the end product uniformity
3. Save your cost of lots of agitators & pipelines
4. Easily adapted into an existing production line without change of the layout
5. Compact size requiring small space
6. Hygienic design for food & pharmaceuticals
7. Various interchangeable stator/rotor for different materials to be handled
A lot of options are available:
1. Complete stainless steel construction to meet the strict hygienic requirement
2. Multiple stage stator/rotor for single pass processing to save more time but a better uniformity
3. Mixer to be installed on a trolley for easy movement
4. Double mechanical seals with thermosyphon tank to cool the seals
5. Contact parts to be built in SS304, SS316L, SS316Ti or others
6. Dull polishing or mirror-like polishing
APPLICATIONS:
High Shear Pumps are widely used by a variety of industries in different stages of the processing. They are highly efficient to save a lot of energy and time compared with traditional mixing methods.
I) Food & Beverage
Reconstituted milk, Salad dressing, Mayonnaise, Ice cream, Cheese, Yogurt, Fruit juice
Ii) Pharmaceutics & Biology
Drug synthesis, Vaccine, Fat emulsion, Injectable suspension, Veterinary medicine, Cell extraction
Iii) Cosmetics & Daily Care
Detergent, Body gel, Shampoo, Cream, Lotion, Tooth paste, Soap
Iv) Chemicals & Oil Industry
Synthetic rubber, Resin, Bitumen, Silicon oil, Dye, Pigment, Coating, Ink, Nano material
| Watts, kW | RPM, @50Hz | Max. Capacity | Size [DN] | |
| [L/hr] @ 1 cPs | Inlet | Outlet | ||
| 2.2 | 3,000 | 3,000 | 40 | 32 |
| 5.5 | 5,000 | 50 | 40 | |
| 7.5 | 8,000 | 50 | 40 | |
| 11 | 12,000 | 65 | 50 | |
| 15 | 18,000 | 65 | 50 | |
| 22 | 25,000 | 65 | 50 | |
| 37 | 35,000 | 80 | 65 | |
| 45 | 50,000 | 100 | 80 | |
| 55 | 75,000 | 100 | 80 | |
| 75 | 90,000 | 125 | 100 | |
| 90 | 110,000 | 125 | 100 | |
| 132 | 130,000 | 150 | 125 | |
| 160 | 1,500 | 140,000 | 175 | 150 |
| 185 | 160,000 | 175 | 150 | |
1. Actual liquid capacity will vary depending on the liquid type and different stator rotor system.
2. PerMix offers bigger capacity according to customer requests.
3. PerMix reserves the right to modify the design without notice.
| Watts, kW | RPM, @50Hz | Max. Capacity | Size [DN] | |
| [L/hr] @ 1 cPs | Inlet | Outlet | ||
| 7.5 | 3,000 | 8,000 | 50 | 40 |
| 11 | 12,000 | 65 | 50 | |
| 15 | 18,000 | 65 | 50 | |
| 22 | 22,000 | 65 | 50 | |
| 37 | 30,000 | 100 | 80 | |
| 55 | 40,000 | 125 | 100 | |
| 75 | 55,000 | 125 | 100 | |
| 90 | 1,500 | 65,000 | 125 | 100 |
| 110 | 80,000 | 150 | 125 | |
| 132 | 100,000 | 150 | 125 | |
| 160 | 120,000 | 150 | 125 | |
| 185 | 140,000 | 150 | 125 | |
| 200 | 155,000 | 200 | 150 | |
| 250 | 180,000 | 200 | 150 | |
1. Actual liquid capacity will vary depending on the liquid type and different stator rotor system.
2. PerMix offers bigger capacity according to customer requests.
3. PerMix reserves the right to modify the design without notice.
