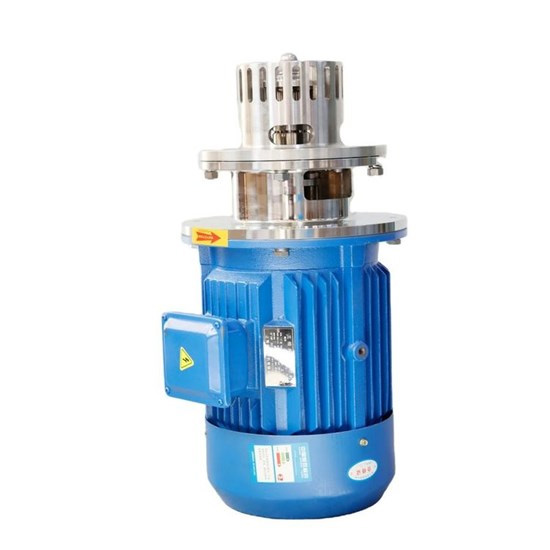

Bottom Emulsifier

Application:
Liquid with Suspended Solids, Liquid
Mixer Type:
Homogenizer
Working:
High Speed Mixer
Stirring Type:
Forced
Application Area:
Chemical
Contact Now

PRODUCT PARAMETERS

Model No. Motor Power Motor Speed(r/min) Capacity(L) D D1 P L M
WRL-90 1.5 2900 10-50 80 140 200 355 165
WRL-100 2.2 2900 50~100 88 145 200 650 165
WRL-120 4 2900 100~300 120 180 250 750 215
WRL-140 7.5 2900 300~800 140 210 300 900 265
WRL-160 11 2900 500~1500 160 230 350 1050 300
WRL-180 18.5 2900 600~2000 180 260 350 1200 300
WRL-200 22 1450-1500 800~2500 200 270 350 1200 3000
WRL-220 30 1450-1500 1000~3500 240 320 400 1355 350
WRL-240 37 1450-1500 1500~5000 260 340 400 1395 350

*The above information is for reference only and can be customized according to customer requirements.

*This equipment can be customized according to customer's materials to meet the needs of the process,such as requiring greater viscosity, enhanced homogenization function, heat sensitive materials and other requirements.

WORKING PRINCIPLE

The machine is compact in structure, small in size, light in weight, easy to operate, low in noise and stable in operation. Its biggest feature is that it does not grind materials in production, and combines high-speed shearing, mixing, dispersing and homogenizing.

The shearing head adopts a claw type and two-way suction structure, which avoids dead angles andeddies caused by dificulty in inhalation of the upper material. The high-speed rotating rotor produces a strong shear force that causes the material to break radially into the narrow, precise gap between the stator and the rotor. The material is subjected to centrifugal extrusion, impact and the like, thereby being sufficiently dispersed, mixed, and emulsifled.

Note: If the machine is used in a vacum or on a pressurized container, an additional mechanical seal is required.

Bottom Emulsifier

Intermittent High Shear Working Process

Bottom Emulsifier
