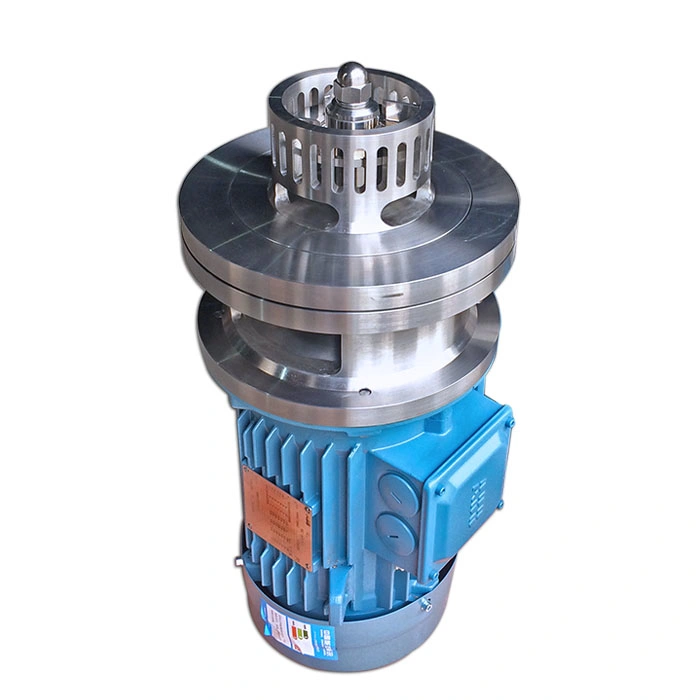

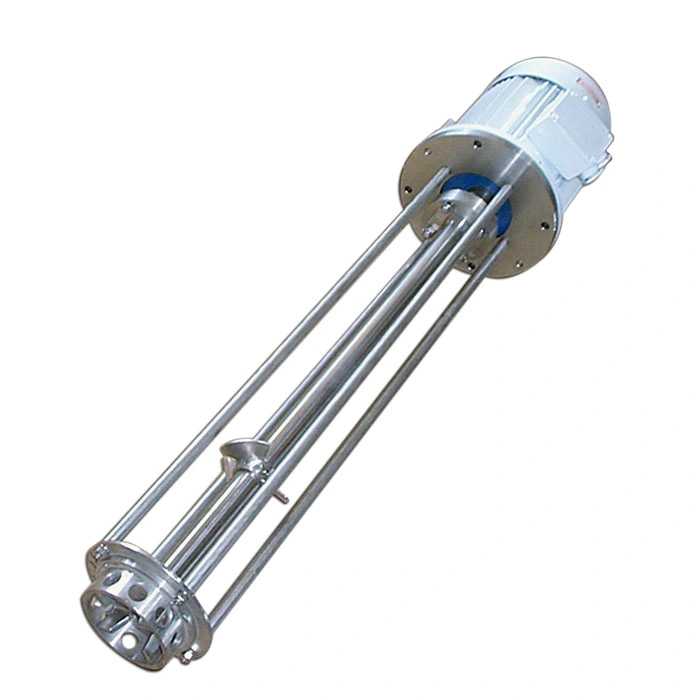

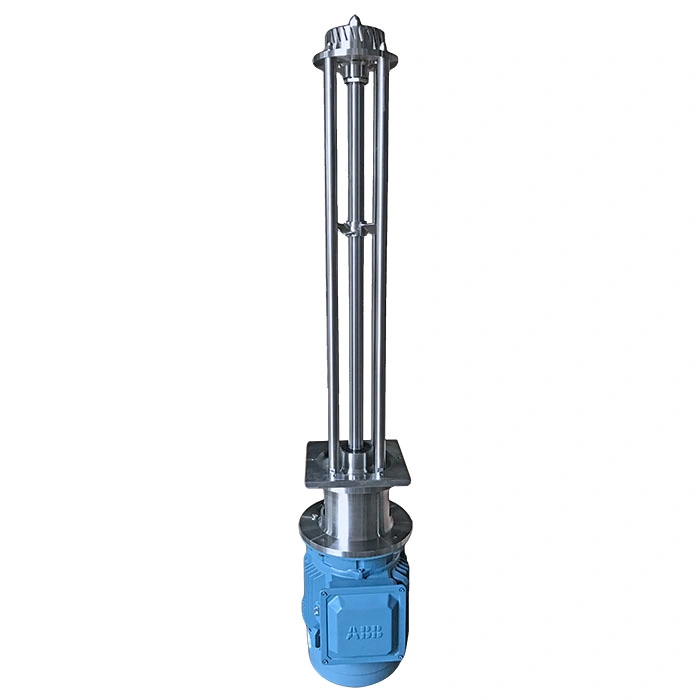

Batch Shear Mixer (Top entry mixer, PS series)

Application:

Liquid with Suspended Solids

Mixer Type:

Homogenizer

Working:

High Speed Mixer

Stirring Type:

Forced

Application Area:

Chemical

Contact Now

PRODUCT PARAMETERS

Batch Shear Mixer (Top entry mixer, PS series)

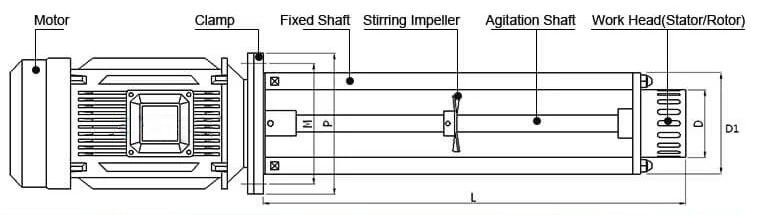

Model No.	Motor Power	Motor Speed(r/min)	Capacity(L)	D	D1	P	L	M
WRL-90	1.5	2900	10-50	80	140	200	355	165
WRL-100	2.2	2900	50~100	88	145	200	650	165
WRL-120	4	2900	100~300	120	180	250	750	215
WRL-140	7.5	2900	300~800	140	210	300	900	265
WRL-160	11	2900	500~1500	160	230	350	1050	300
WRL-180	18.5	2900	600~2000	180	260	350	1200	300
WRL-200	22	1450-1500	800~2500	200	270	350	1200	3000
WRL-220	30	1450-1500	1000~3500	240	320	400	1355	350
WRL-240	37	1450-1500	1500~5000	260	340	400	1395	350

*The above information is for reference only and can be customized according to customer requirements.

*This equipment can be customized according to customer's materials to meet the needs of the process,such as requiring greater viscosity, enhanced homogenization function, heat sensitive materials and other requirements.

WORKING PRINCIPLE

The machine is compact in structure, small in size, light in weight, easy to operate, low in noise and stable in operation. Its biggest feature is that it does not grind materials in production, and combines high-speed shearing, mixing, dispersing and homogenizing.

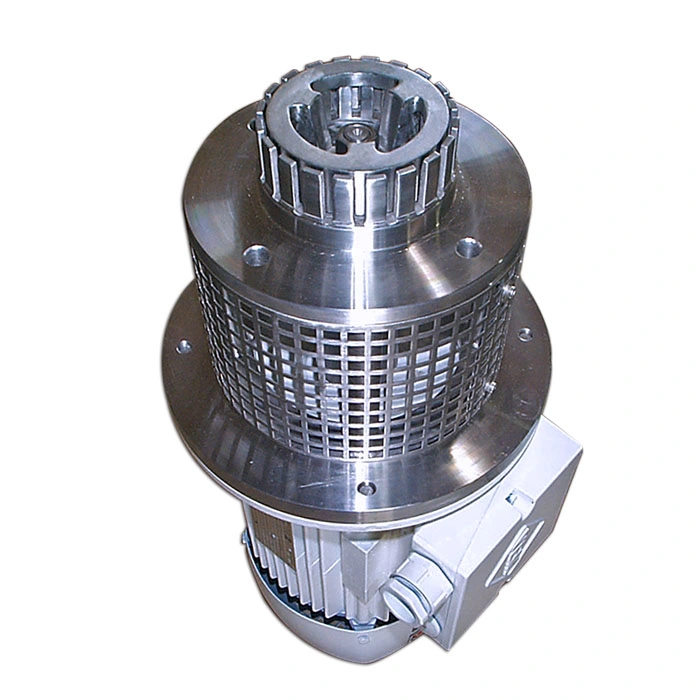

The shearing head adopts a claw type and two-way suction structure, which avoids dead angles andeddies caused by dificulty in inhalation of the upper material. The high-speed rotating rotor produces a strong shear force that causes the material to break radially into the narrow, precise gap between the stator and the rotor. The material is subjected to centrifugal extrusion, impact and the like, thereby being sufficiently dispersed, mixed, and emulsifled.

Note: If the machine is used in a vacum or on a pressurized container, an additional mechanical seal is required.
