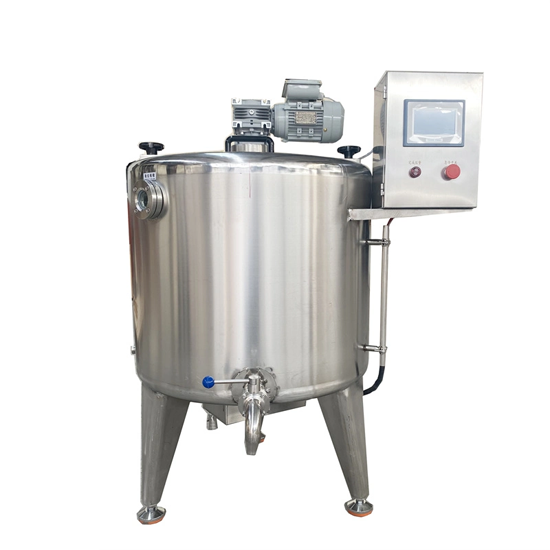

Batch 100L 150L 200L 500L 1000L Fermenter Dairy Processing Machinery Yogurt Fermentation Stainless Steel Fermented Tank
- After-sales Service:
- Available
- Warranty:
- Available
- Process:
- Ferment
Basic Info.
| Model NO. | fermenter | Power Source | Electric |
| Certification | CE | Automatic Grade | Manual |
| Application | Milk, Yogurt, Cheese | Customized | Customized |
| Power | 318V,50Hz , Customized Optional | Capacity | Fermentation 100L 150L 200L,500L,1000L |
| Certificate | ISO | Transport Package | Wood Carton |
| Specification | customized | Production Capacity | 100 |
Product Description
- Suite for Liquid Yogurt ,Cheese Fermentation
- Easy to operate and clean
- can make sterilization function and sterilization
- manual processing
- Good energy saving
Specifications
| Model | 100L | 150L | 200L | 300L | 500L | 1000L |
| Tank Inner Dia | 630mm | 630mm | 630mm | 850mm | 900mm | 1200mm |
| Tank Outer Dia. | 740mm | 740mm | 740mm | 950mm | 1000mm | 1300mm |
| Tank Inner Height | 400mm | 600mm | 670mm | 750mm | 850mm | 900mm |
| Capacity | 100L/Batch | 150L/Batch | 200L/Batch | 300L/Batch | 500L/Batch | 1000L/Batch |
| Sterile Temp. | 45-90degree (adjustable) |
45-90degree (adjustable) |
45-90degree (adjustable) |
45-90degree (adjustable) |
45-90degree (adjustable) |
45-90degree (adjustable) |
| Power | 380V 9KW/220V 6KW | 380V 9KW | 380V 9KW | 380V 12KW | 380V 24KW | 380V 48KW |
| Outer Size | 800*750*1230mm | 800*750*1430mm | 800*750*1530mm | 1000*1100*1650mm | 1300*1100*1850mm | 1600*1400*2200mm |
| Weight | 100kg | 150kg | 180kg | 220kg | 270kg | 400kg |
The specificationscan be customized from 100L to 2000L. Used in liquid materials such as Yogurt
Yogurt fermentation tank Usage
Yogurt fermentation tank is used for the production of yogurt, the cultivation and production of fermentation materials and other microorganisms and probiotic strains
This stainless steel fermentation machine is used for mixing, fermentation and enzymatic hydrolysis operations in dairy, food, bioengineering, beverage, fruit wine, daily chemicals, pharmaceutical and other industries.
Yogurt fermentation tank features
1,With heating, cooling, insulation and stirring functions
2, Yogurt fermentation tank, the tank body and upper and lower heads (or dish-shaped) are polished
The jade inside the jar is mirror polished.
Yogurt fermentation tank structure
The yogurt fermentation tank is a fully enclosed vertical three-layer stainless steel structure, with a solid layer and a cave-protecting layer (can be heated, cooled, and protected according to customer requirements). The fermentation equipment is also equipped with air suction device, CP cleaning head, sanitary manhole, sight glass, liquid level gauge, sight light and other structures
Principle of Yogurt Fermentation Tank
The stirring system of the yogurt fermentation tank adopts bottom or top magnetic stirring
