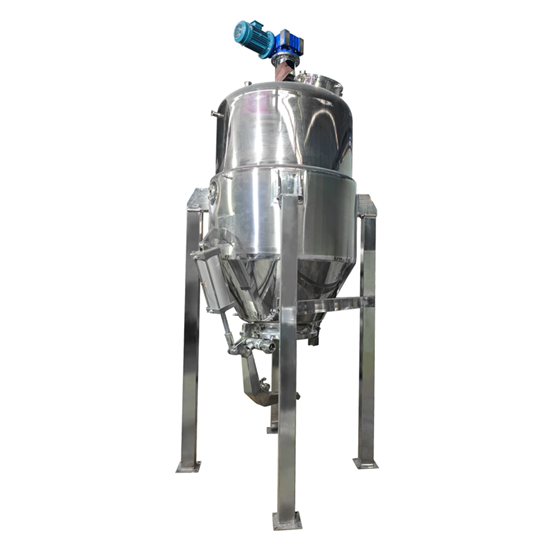

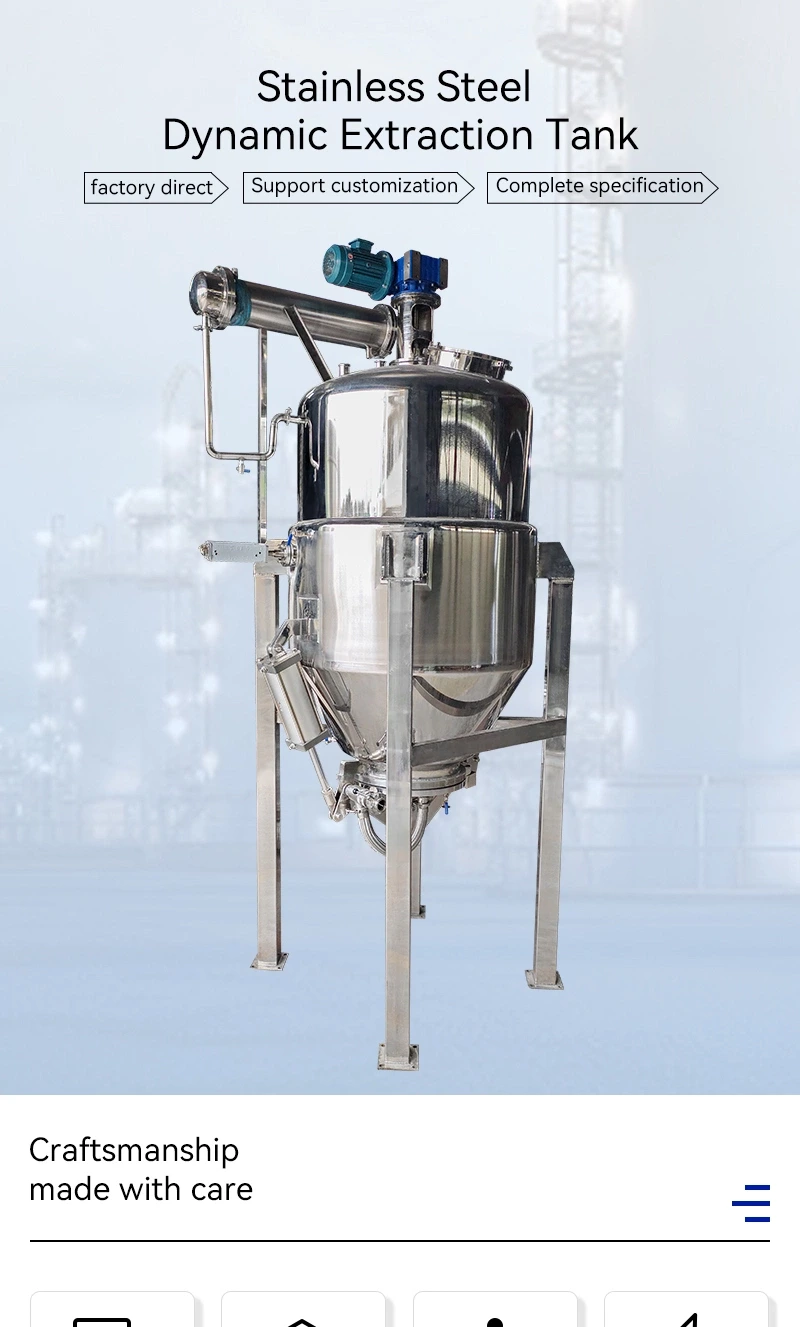

2000L Stainless Steel Dynamic Extraction Tank Explosion-Proof Reducer Dual Cylinder Automatic Locking Slag Discharge Door
- Type:
- Extraction Equipment
- After-sales Service:
- Online After-Sales Service
- Warranty:
- 1 Year
- Mixer Type:
- Agitator
- Operating type:
- Continuous Type
- Object:
- Herb
- Separation Mode:
- Cooking Extraction
Basic Info.
| Centrifuge Type | Customer Customization | Installation | Vertical |
| Extraction Tower Type | Customer Customization | Distillation Equipment Type | Steam Distillation Equipment |
| Condition | New | Pressure | Low Pressure |
| Diameter of Feeding Port | 390 mm | Does It Support Processing Customization | Yes |
| Heating Area | 3 Cubic Meters | Tank Pressure | 0.09MPa |
| Scope of Use | Extraction of Traditional Chinese Medicine Solutio | Material Quality | SUS 304/SS316L |
| Filter Type | Stainless Steel Filter Screen | Jacket Pressure | 0.25MPa |
| Capacity | 2000L | Extraction Process | Normal Pressure, Micro Pressure, Water Frying, War |
| Condensing Area | 0.8 Cubic Meters | Function | Extraction |
| Specification | 2000L | Transport Package | Wooden Case Packing |
Product Description
Introduction to Stainless Steel Extraction Tank
Maike's extraction tank is based on our own process method. This equipment can be used for various process operations such as normal pressure, micro pressure, water decoction, warm soaking, heat reflux, forced circulation percolation, aromatic oil extraction and organic solvent recovery in traditional Chinese medicine, food and chemical industries. It has the advantages of high efficiency and convenient operation. The tank is equipped with a CIP cleaning system, which conforms to GMP standards.The material is made of high-quality stainless steel SS304 or SS316L (as required by the customer). The Extration tank is produced, tested, and used according to the JB4735-1997 standard. Complies with GMP requirements.
We use argon arc welding to eliminate welding pressure. All surfaces are smooth and free from roughness.
Specification of stainless steel extraction tank:
