Automatic Vacuum Emulsifying Mixer Cosmetic Cream Lotion Homogenizer Emulsifier Toothpaste Making Production Machine
- After-sales Service:
- Online
- Warranty:
- 1 Year
- Place of Origin:
- China
Basic Info.
| Application Area | Chemical | Certification | CE, ISO, SONCAP, CCC, API, SGS |
| Mixing Drum Shape | Double Cone | Layout Type | Verticle |
| Operating type | Continuous Operating | Additional Capabilities | Milling |
| Optional | PLC Touch Screen Control or Button Control | Condition | New |
| Feeding Products to Main Tank Mehtod | Vacuum | Heating Method | Steam Heating or Electric Heating |
| Mixer Speed Method | Frequency | Circulation Method | Internal Ciruculation and External Circulation |
| Machines for | Cosmetics Cream ,Ointment ,Sauce Food etc | Open Cover Method | Hydraulic Lift |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory | Can Add Functions | Weight System ,Automatic Valve |
| Steam/Cooling Water | Steam Heating Shell Protection to Prevent Contact | After Warrenty Service | Video Technical Support,Arrange Enginner |
| Capacity | 100L 200L 300L 500L 1000L 2000L | Main Pot Configuration | Manhole ,Hopper ,Air Filter ,Sight Glass etc |
| Specification | 50-5000L | Emulsification System | 0-3600rpm |
| Origin | China | Transport Package | Packing by Wooden Case |
| Production Capacity | 1000sets Per Month | HS Code | 8479820090 |
Product Description

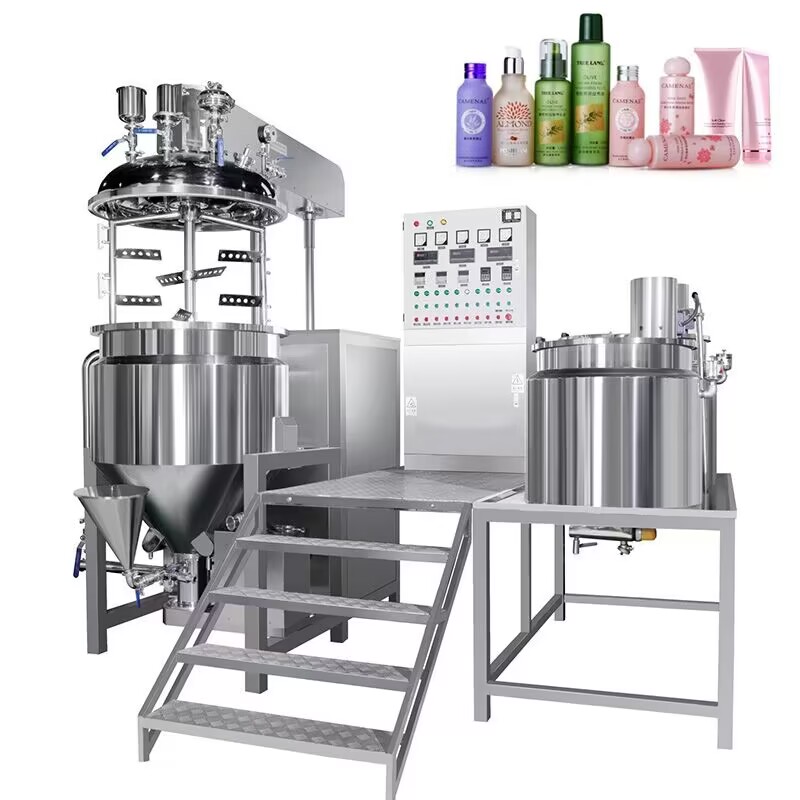

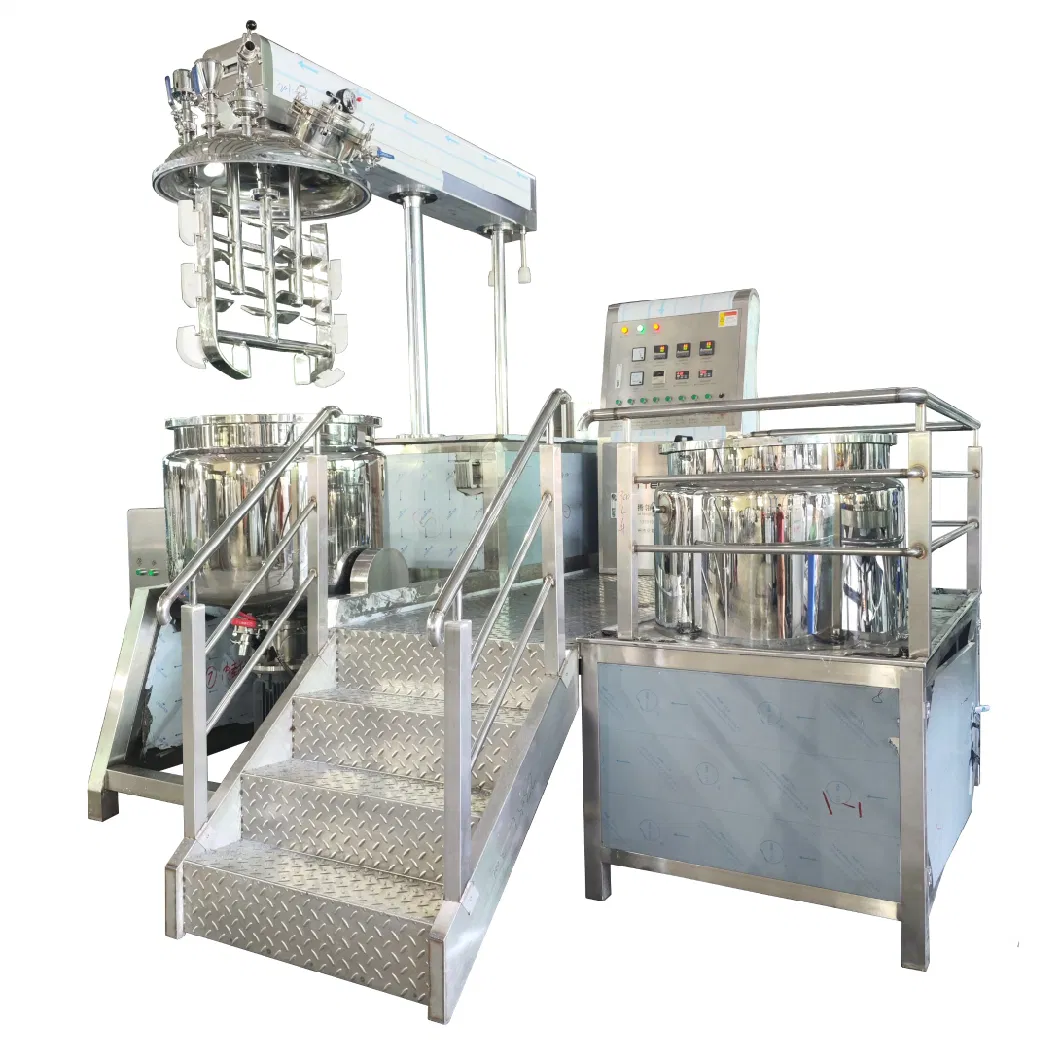

100L cosmetics cream vacuum emulsifying mixer (Bottom homogenizer)
Product Description
Vacuum emulsifying mixer (bottom homogenizer), this agitator has the functions of emulsifying, homogenizing, heating and etc. It is suitable for producing emulsion or cream viscous product. It is widely used to product medicine emulsion, ointment, vanishing cream, facial mask, face cream, emulsion flavor, oil-water emulsification, emulsified asphalt, resinification, wax emulsion, waterborne polyurethane emulsion, pesticide, tissue homogenate, dairy production emulsion, juice, ink, jam.
Note that it is essential to keep low product losses, and Scmixer designs the machine as a short time cleaning to support frequent batch changes. Vacuum pumps and CIP valves are fully integrated in a manner consistent with GMP requirements to facilitate the cleaning of the external surface.
Principle Feature
1.With hydraulic lifting system, free lifting pan cover and inverted pan reset.
2.The mixing system adopts the advanced three heavy mixer variable frequency speed regulation, which can meet the production of different process requirements.
3.The vacuum can make the material to achieve the aseptic requirements, and the use of vacuum suction, which can meet the different requirements of the production process.
4.The heating method mainly include electric or steam heating for customer's choice
Technical parameter
| Workingcapacity | Homogenizer | Agitator | Vacuum pump | Heating power (KW) |
||||
| KW | r/min | KW | r/min | KW | Limit vacuum | Electrical heating | Steam heating | |
| 100L | 4 | 0-3600 | 1.5 | 0~63 | 1.5 | -0.09 | 30 | 12 |
| 200L | 5.5 | 0-3600 | 2.2 | 0~63 | 2.2 | -0.09 | 45 | 16 |
| 300L | 7.5 | 0-3600 | 2.2 | 0~63 | 2.2 | -0.09 | 48 | 18 |
| 500L | 11 | 0-3600 | 4 | 0~63 | 3.85 | -0.09 | 60 | 24 |
| 1000L | 15 | 0-3300 | 7.5 | 0~52 | 5.5 | -0.09 | 72 | 30 |
| 2000L | 18.5 | 0-3300 | 11 | 0~45 | 7.5 | -0.09 | / | 49 |
| 3000L | 22 | 0-3300 | 15 | 0~45 | 7.5 | -0.09 | / | 66 |
| 5000L | 22 | 0-3300 | 18.5 | 0~38 | 11 | -0.09 | / | 77 |
Application field
We also can offer production line (Offer turn key project for you )
Warmly welcome to vist our company and machines .
Welcome to learn more information about machines (picture ,video and specification ).(Turn-key project
