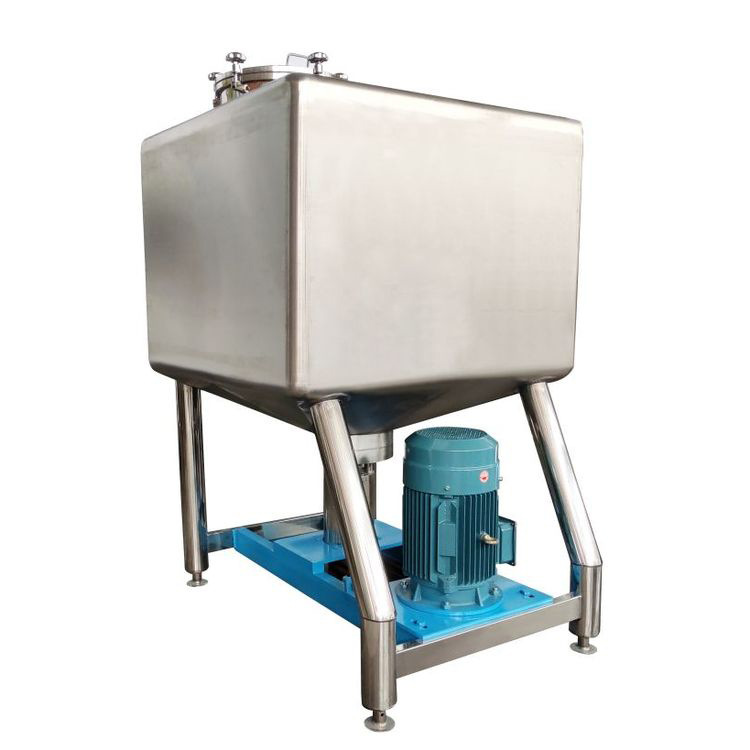

Square Emulsification Tank
- Type:
- Pharmaceutical Packaging Machinery
- Finished Dosage Form:
- Liquid
- Precision:
- Precision
The high speed emulsification can adopts high speed impeller bottom mixing device, to the sugar, milk powder, glue and other additives has a good dissolve emulsification, is the highest efficiency products in the similar products.
Characteristics of High Speed Emulsification Can
structure of high speed emulsification can
Centrifugal high speed emulsified head can produce huge rotating suction, absorbing materials in the top, then throw to the stator with high speed, after shearing, collision and smashing between the stator and shear, materials collected to export and experiment. At the same time, the anti-swirl flap in stainless steel tank bottom force into troubled force, so that the materials can mix even, prevent powder in liquid surface accumulation, and to achieve the purpose of emulsified hydration.
Usages of High Speed Emulsification Can
1. The food and beverage: dairy products, ice cream, chocolate, soy milk, fruit juice and jam.
2. Chemical industry: lubricating oil, grease, heavy oil emulsification, diesel oil emulsion, disinfectant, pesticides, photographic latex, rubber slurry, resin pulp, thickener, essence, silicone material, carbon black, magnesium oxide, titanium dioxide, prevent adhesive, defoaming agent, sealant, etc.
3. Cosmetics industry: detergent, conditioners, shampoo, lotion, perfume.
4. The pharmaceutical industry: injections, medicine emulsion, medicine cream, health care products, medicine slurry preparation;
5. Paper industry: pulp, adhesive, note agent, resin emulsion.
Technical Parameters of Emulsification Can
Volume | 300L | 400L | 500L | 600L | 800L | 1000L | 1500L | 2000L | 3000L |
Body diameter(mm) | Φ800 | Φ800 | Φ900 | Φ1000 | Φ1000 | Φ1000 | Φ1200 | Φ1300 | Φ1600 |
Body height(mm) | 600 | 800 | 800 | 800 | 1000 | 1220 | 1220 | 1500 | 1500 |
Motor power(kw) | 3 | 3 | 4 | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 |
Stirring speed (rpm) | 1750 r/min | ||||||||
strecture | Square, opening cover/conical bottom |
Notes:
1. The technical parameters of emulsification can is standard configuration, any special requires, please put forward.
2. The process parameters that need provided: the material properties, volume, special requirements, etc.
