RHP Mixing Emulsification Pump

Contact Now

PRODUCT PARAMETERS

Model No. Motor Power(kw) Motor Speed(r/min) Flow Range(m3/h) Inlet Outtlet
SRH-1-60 1.1 2900 0-1 DN40 DN32
SRH-1-80 1.5 2900 0-1.5 DN40 DN32
SRH-1-100 2.2 2900 0-3 DN40 DN32
SRH-1-130 4 2900 0-4 DN40 DN32
SRH-1-140 5.5 2900 0-5 DN50 DN40
SRH-1-165 7.5 2900 0-8 DN50 DN40
SRH-1-180 11 2900 0-12 DN65 DN50
SRH-1-190 15 2900 0-20 DN65 DN50
SRH-1-200 22 2900 0-25 DN65 DN50
SRH-1-210 30 2900 0-35 DN80 DN65
SRH-1-230 45 2900 0-50 DN100 DN80
SRH-1-245 55 2900 0-75 DN100 DN80
SRH-1-260 75 2900 0-90 DN125 DN100
SRH-1-275 90 2900 0-110 DN125 DN100
SRH-1-280 132 2900 0-130 DN125 DN100

*The above information is for reference only and can be customized according to customer requirements.

*This equipment can be customized according to the nature of raw materials to meet the needs of theprocess, such as greater viscosity, homogenization and other requirements.

PRODUCT STRUCTURE

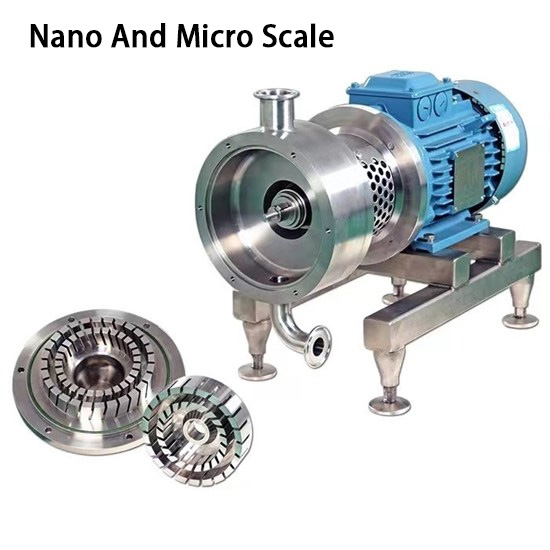

The emulification pump (also called in-line high-shear dispersion mixer) is a highefficient fine mixing equipment which integrates mixing, dispersion, crushing, dissolution, fine, depolymerizing, homogenization and emulsification, whose working components are mainly stator and rotator. The rotor rotates rapidly to produce centrifugal force and hydraulic force and the stator remains stationary.Through the precise combination of the rotor and the stator, a strong shear force is generated during high-speed rotation, and the material is subjected to strong shear, centifugal extrusion, impact rupture,liquid friction, and uniform turbulence. Thus, various media such as immiscible solid phase, liquid phase,and gas phase are uniformly and finely dispersed and emulsifled in an instant. After a reciprocating cycle, a stable and high-quality product is finally obtained.

RHP Mixing Emulsification Pump​​​​​​​

RHP Mixing Emulsification Pump

LWORKING PRINCIPLE

The emulsification pump/in-line high-shear dispersion mixer can fficiently, quickly, and evenly distribute one or more phases into another continuous phase, while in the usual case the phases are mutually insoluble. By high shear linear velocity generated by high-speed rotation of rotor and high kinetic energy brought by high-frequency mechanical effect, the material in the narrow gap of rotor and stator is forced by a strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction,impact tear and turbulence and other comprehensive effects. That makes incompatible solid phase,liquid phase and gas phase instantly homogenized, dispersed and emulsifed under combined action of corresponding mature technology and proper amount of additives. Finally stable and high-quality products are available after repeated cycles of high-frequency.

Three groups of stator and rotor are installed in the working chamber of the emulsification pump. The transmission shaft in the working chamber is cantilevered. The elastic coupling connects the motor and the spindle in the bearing housing to improve the operating quality of the transmission shaft. The sealing forms are optional based on different work conditions. It is suitable for medium and large batches of on-line continuous production or recycling processing production.

RHP Mixing Emulsification Pump
