Customizing Stainless Steel Milk Cooling Tank (Milk Cooling Transport Tank)
- After-sales Service:
- 24hours
- Warranty:
- 1 Year
- Transmission Type:
- Manual
Basic Info.
| Load Capacity | 31-40t | Power | Diesel |
| Tank Volume | ＞30000L | Emission Standard | Euro 3-5 -6 -7 |
| Seats | ≤5 | Drive Wheel | 4/6/10/12 Wheels |
| Engine Capacity | 4-6L | Horsepower | 150-250hp |
| Tire Design | ＞30000L | Storage | Chemical |
| Size | 6058*2438*2591mm | Motor Power | 0.55--15kw |
| Specification | 5000L-36500L | Condition | New |
| Origin | Cn | Transport Package | Road |
| Production Capacity | 3000 | HS Code | 8707909000 |
Packaging & Delivery
| Package Size | 600.00cm * 220.00cm * 259.00cm |
| Package Gross Weight | 4500.000kg |
Product Description

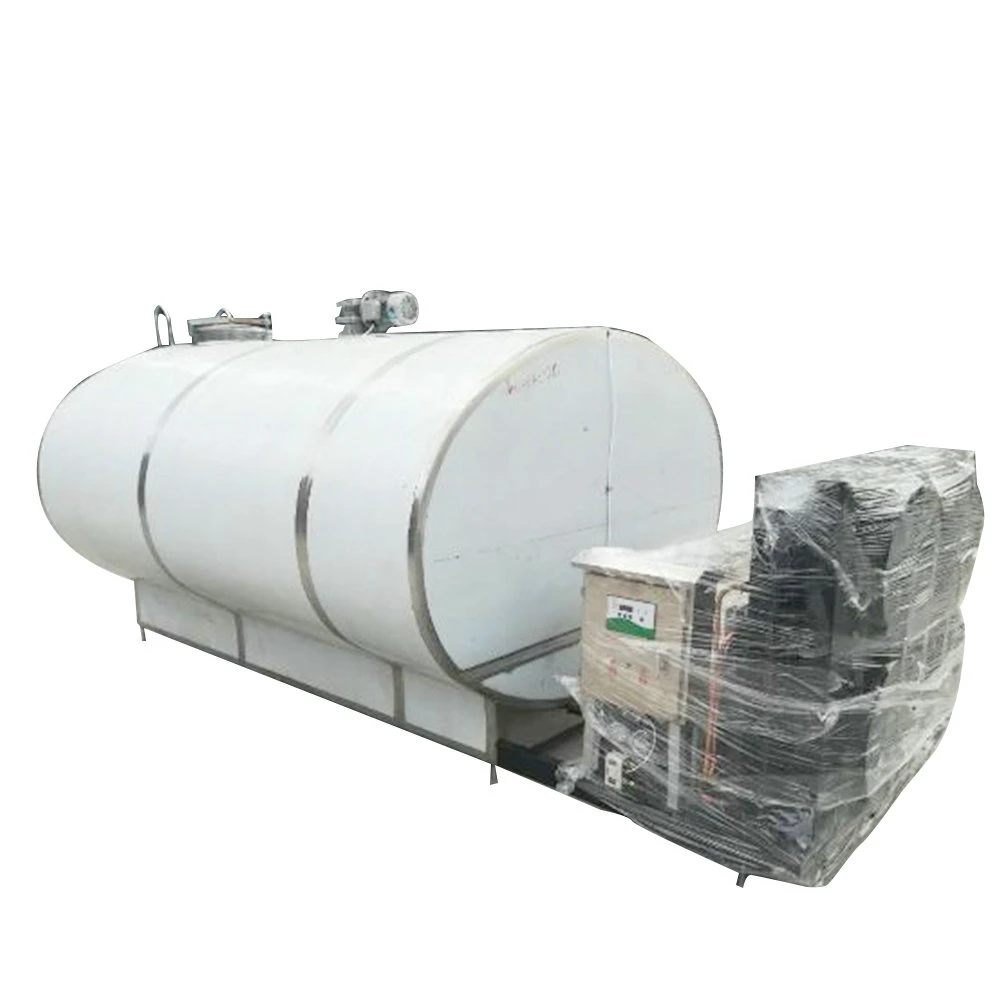

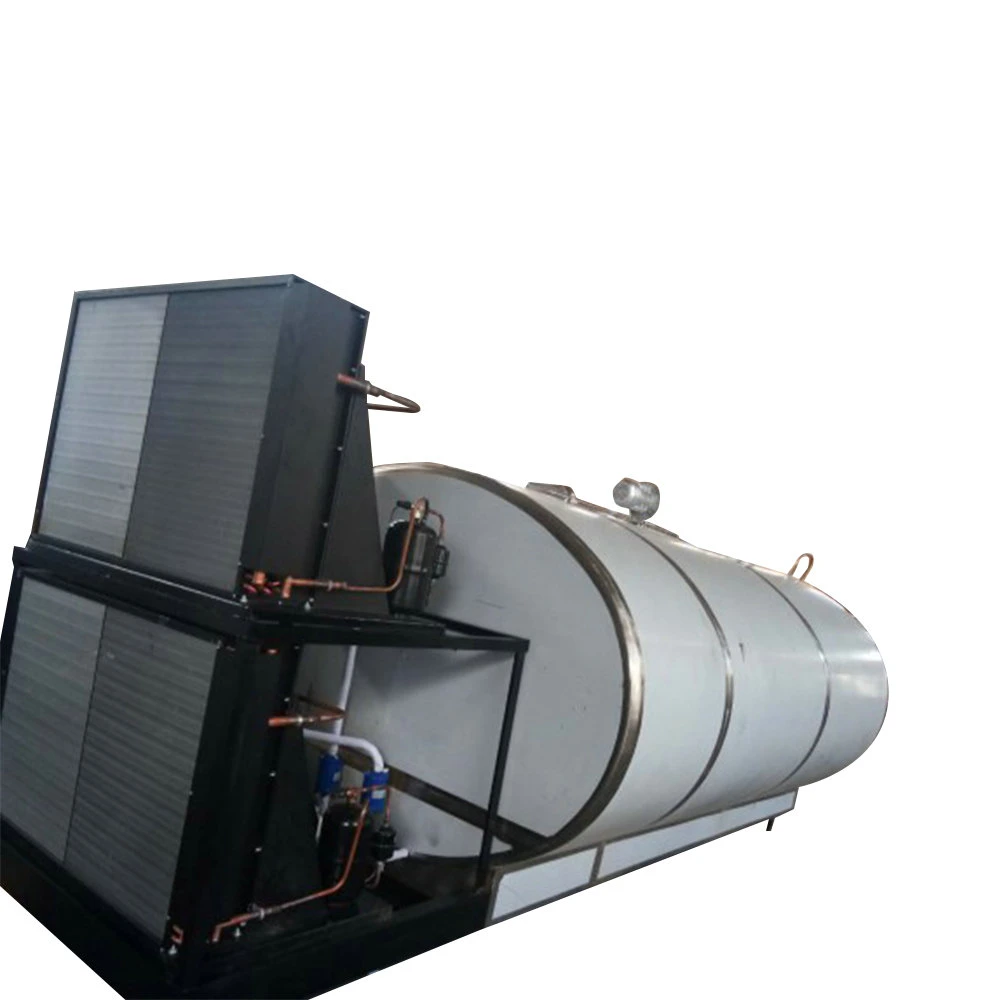

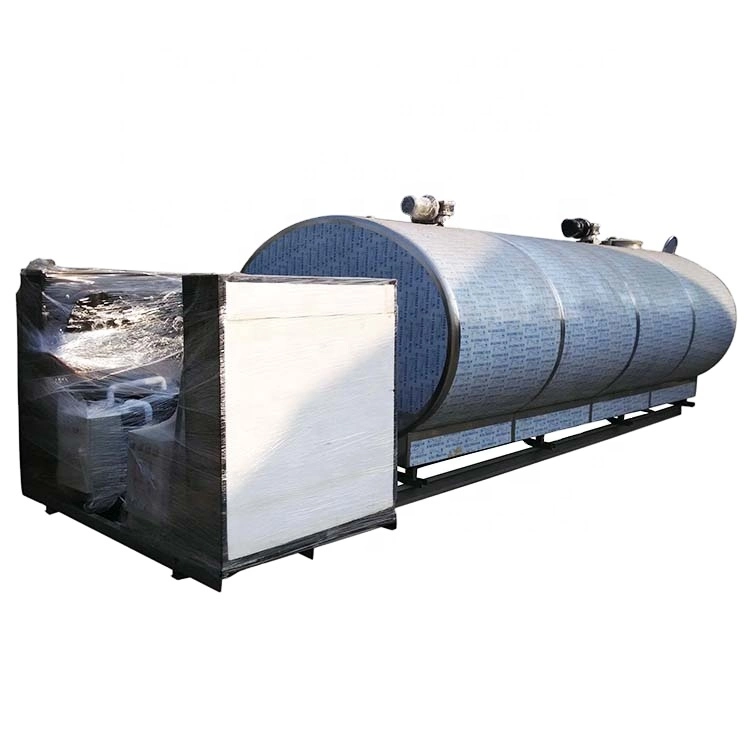

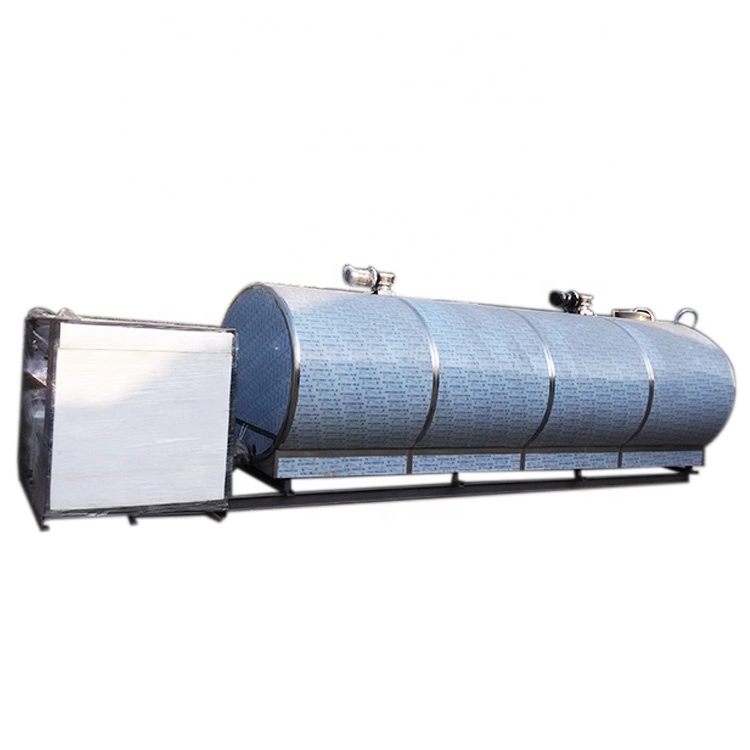

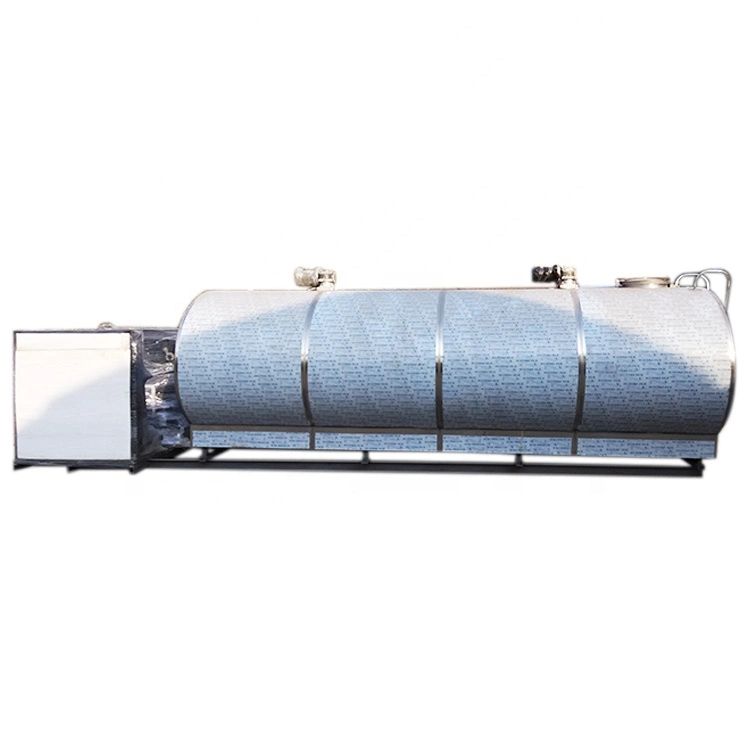

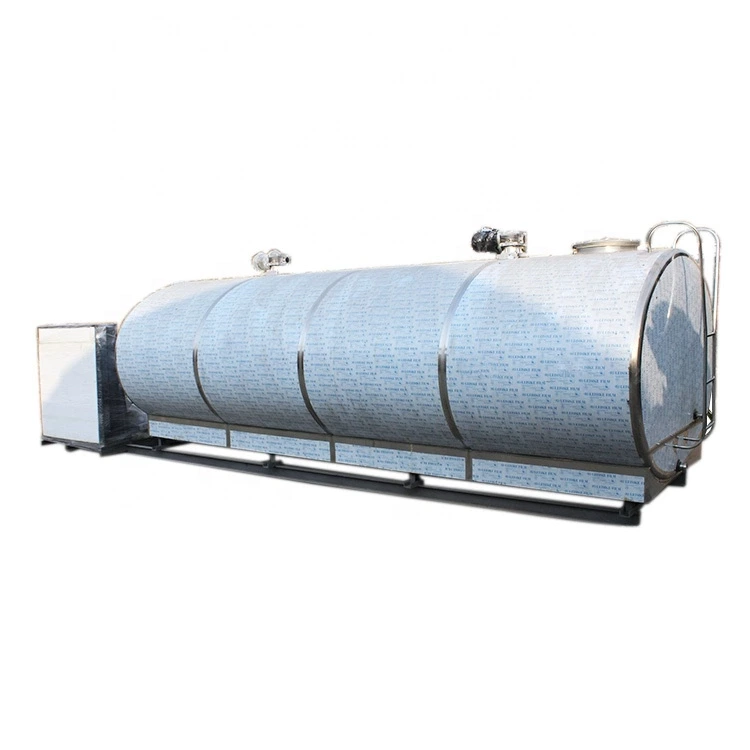

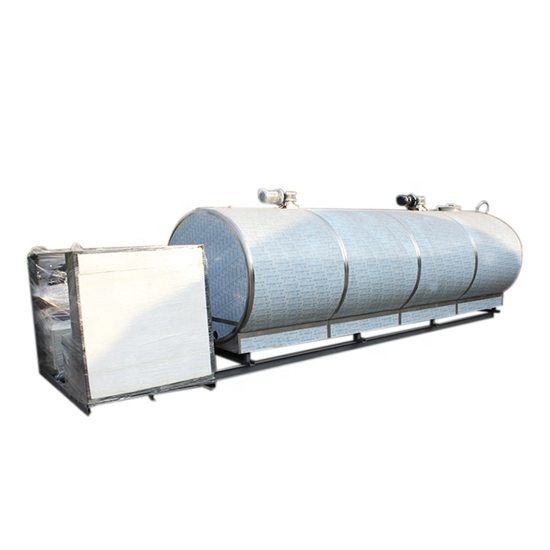

Customizing Stainless Steel Milk Cooling Tank (Milk Cooling Transport Tank )
Mirror Stainless Steel Drinking Water Milk Tank Upper For Tanker Trailer Customizing 2500L -25000L
Ask for better price
Dairy Milk Cooling Tank Specifications:
Model Number |
5000 |

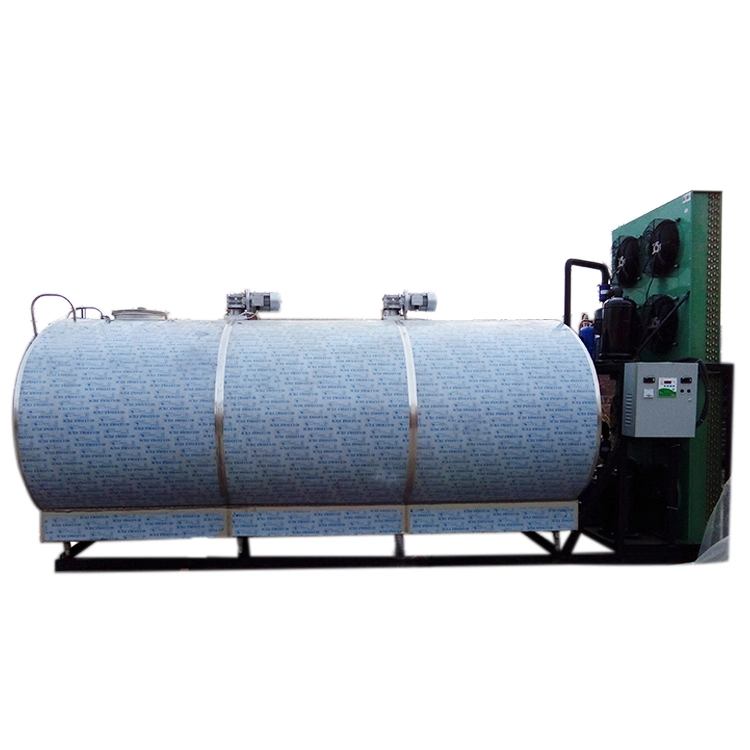

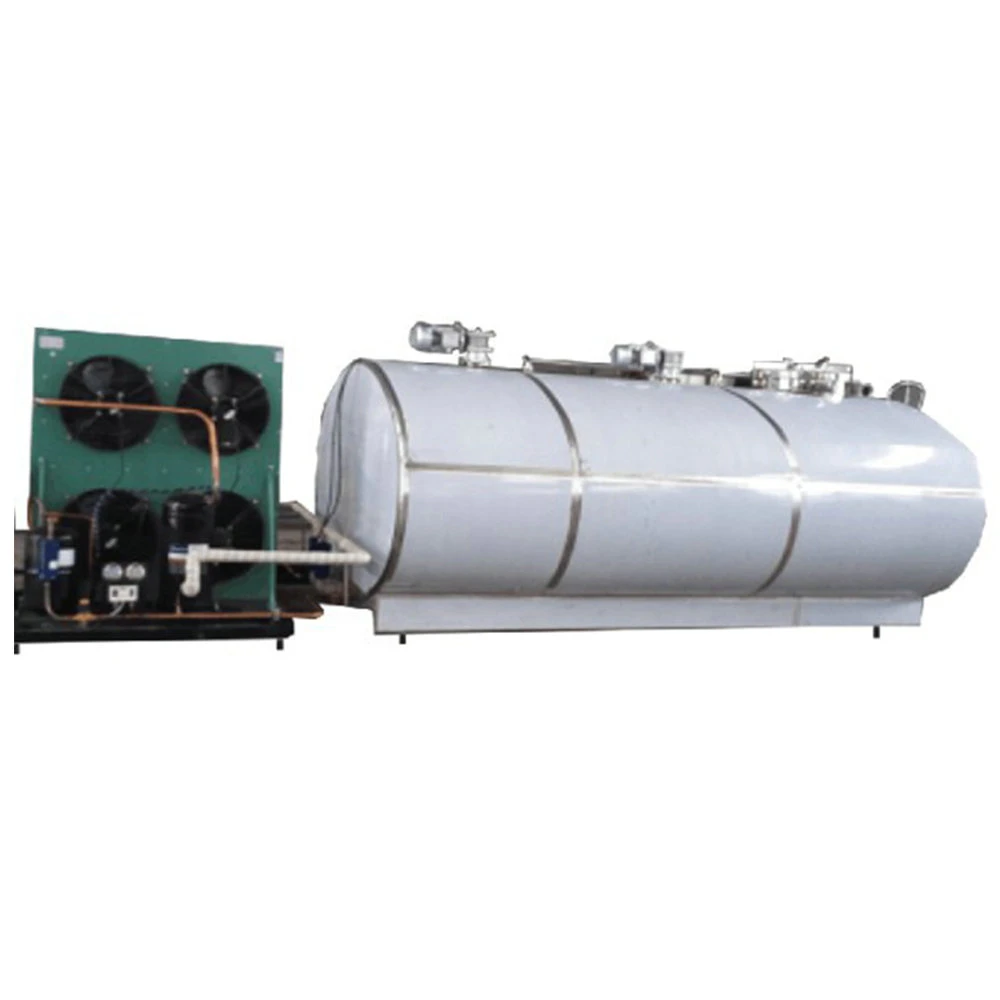

| Item | 5000L Horizontal Milk Cooling Tank |
| Capacity | 5000 liter |
| Type | Horizontal |
| Compressor Power | 10KW |
| Agitator Power | 750W |
| Cooling Capacity | 33550W |
| Refrigerants | 22R |
| Weight | 980kg |
| Dimension(LxWxH) MM | 3500*2000*1550 |
Competitive Advantage:
I. We are machines manufacture sale directly
II. High Quality with reasonable price
III. We provide the technical support within the one year warranty.

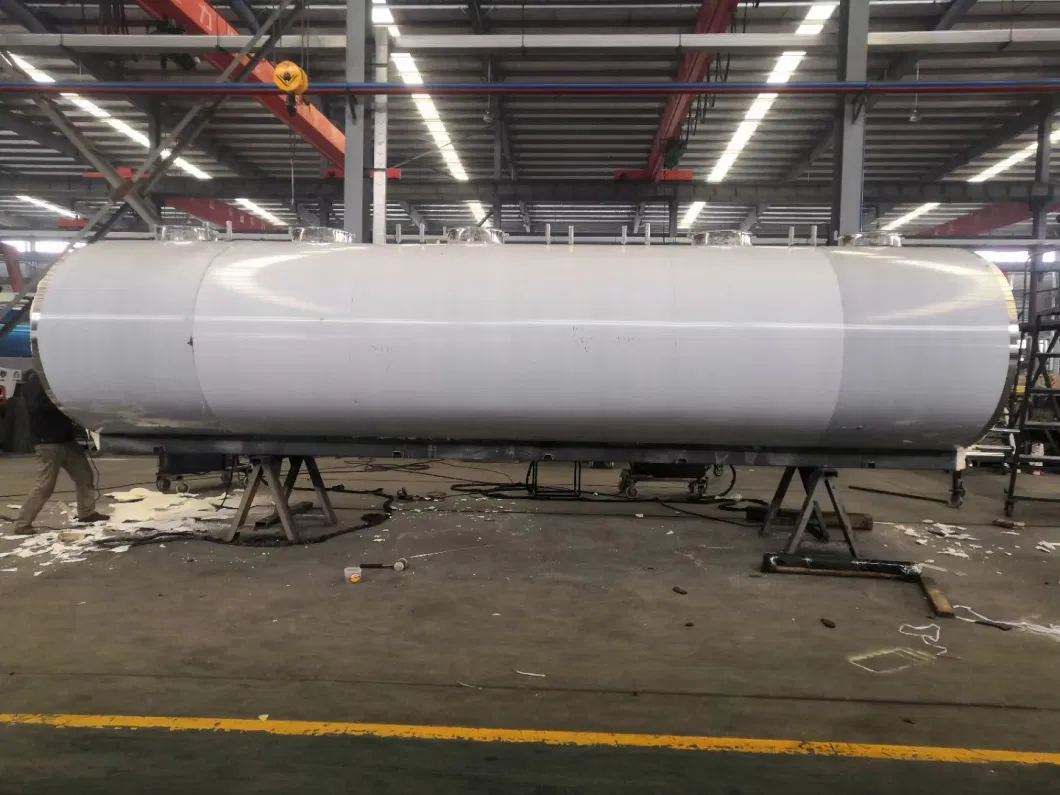

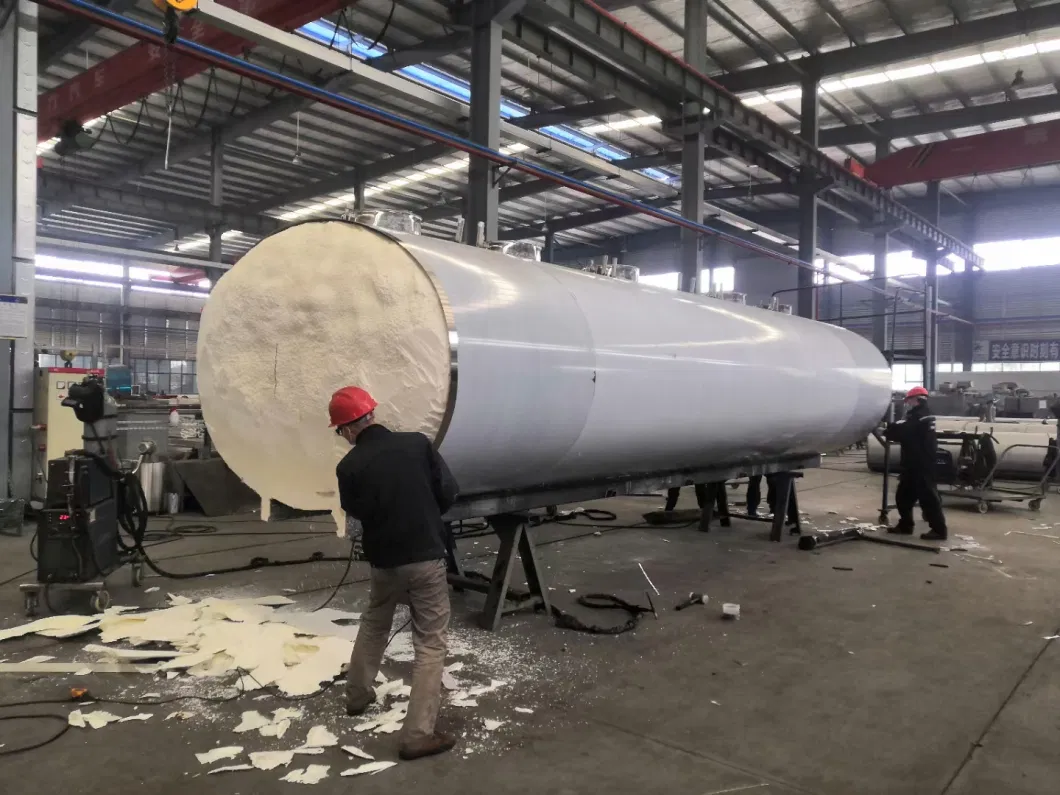

Stainless Steel Road Milk Tankers are of double wall construction with 80mm-100mm PUF Insulation between the inner tank and the outer tank.
The inner tank will have high degree of polish finish for Milk storage and transportation.
The tank will be elliptical in shape with single or multi compartment construction.
Each compartment will have independent manhole assembly, complete with manhole lid, Pressure vacuum relief valve, air vent and CIP cleaning arrangement. The manhole shall be additionally covered with a Stainless Steel dust cover.
The milk discharge from the tank will be at the bottom through a discharge cup, pipe line and butterfly valves. Valve box will be located at the rear platform.
The tank will be having ladder, catwalk, and side protection rail and side protection channels.
The tank rear shall be provided with a Skirting and a platform arrangement.
PUF insulated tank is capable of transporting chilled milk at 3°C to 4°C and the average temperature drop of milk in a fully filled tank in a day will be less than 1°C.
The insulated tank will be integrated with the chassis with a trapezoidal frame and will have adequate slope towards the rear for complete drainage of milk.
CIP cleaning arrangement will be provided for regular water cleaning and maintenance of the tank.
| Tanker body upper size | 3000×1480×1300(mm) | Tank volume | 2500Liters |
| Thickness | 4mm | Material | Stainless steel- 3042B |
| Milk tank material | high quality food grade stainless steel 304-2B Food grade stainless steel plate thickness 3-4mm, insulating layer 80mm, outside stainlesss steel 2mm. |
| Manhole | Man way access hole on top of tank;1-4 units manhole |
| Special function | |
| Special Function |
1. The milk tank is made up of three layers:outside layer(for physical protection),middle layer(thermal insulation),inner layer tank(for milk filling). 2.The thickness of thermal insulation layer is 80mm 3. The tank liner is made of high quality food grade stainless steel,and the inner tank has been fine polished. 4. Equipped with PIC cleaning devices. 5. With function of thermal insulation: medium temperature change≤1°C during 24 hours. 6. The tank can be diveded into several parts according to demand to load different matrials. |
↵
Product Description

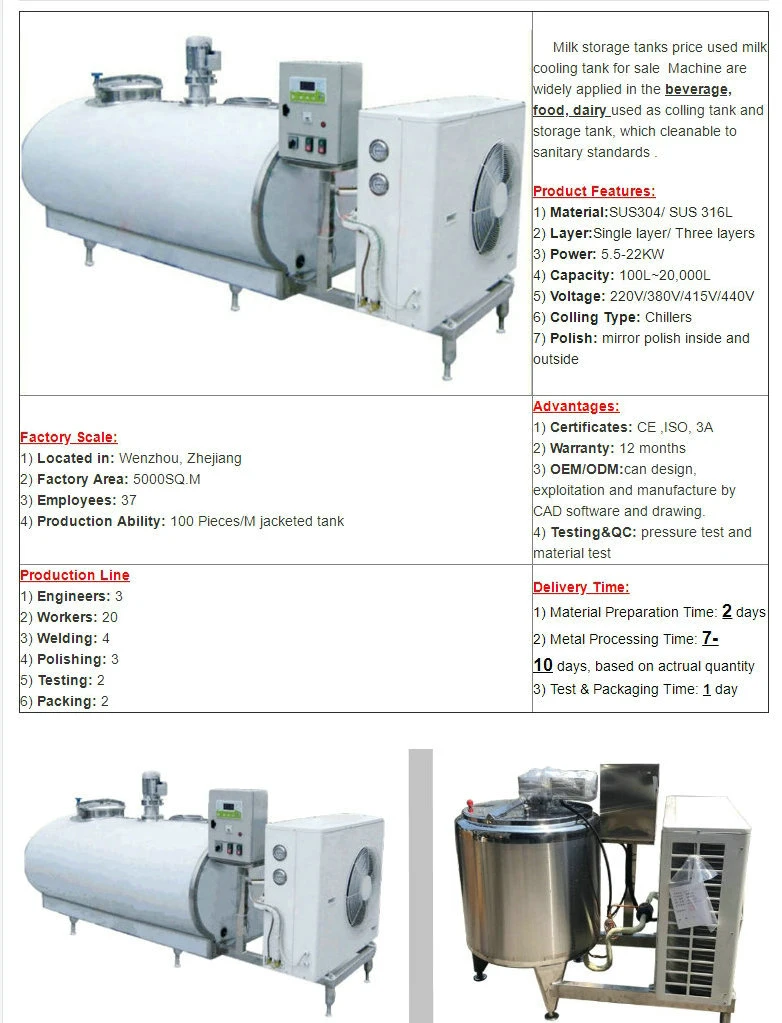

Stainless steel Milk Cooling Tank price/milk chilling vat
Milk Cooling Tank Specification
| Model | Capacity | Material | Matching Power | Power | Voltage | External Size | Packing Size |
| 500L | 500L | SUS304 | 2P | 1.8KW | 220V | L:1860mm W:1300mm H:1100mm | L:2250mm W:1400mm H:1200mm |
| 1000L | 1000L | SUS304 | 3P | 3KW | 380V | L:2200mm W:1400mm H:1180mm |
L:2250mm W:1500mm H:1230mm |
| 2000L | 2000L | SUS304 | 5P | 5KW | 380V | L:2760mm W:1860mm H:1180mm |
L:2800mm W:1960mm H:1230mm |
| 3000L | 3000L | SUS304 | 6P | 6KW | 380V | L:3000mm W:1860mm H:1180mm |
L:3050mm W:1960mm H:1300mm |
| 6000L | 6000L | SUS304 | 14P | 14KW | 380V | L:3800mm W:2300mm H:2000mm |
L:3850mm W:2400mm H:2100mm |
| 8000L | 8000L | SUS304 | 16P | 16KW | 380V | L:4000mm W:2350mm H:2000mm |
L:4050mm W:2450mm H:1800mm |
| 10000L | 10000L | SUS304 | 20P | 20KW | 380V | L:4355mm W:2350mm H:2340mm |
L:4360mm W:2450mm H:2400mm |
Structure:
This equipment is used to transport milk and fresh it, to ensure milk is fresh,hygiene, non-perishable, easy to clean equipment.
Function:
The device is made of (SUS304) stainless steel, corrosion-resistant, the overall design is beautiful, generous, the insulation layer is filled with polyurethane foam and with good insulation properties, temperature does not rise more than 2 degrees during 24 hours, the product volume is from 3T to 30T, Can be Customized.
1.Application
Milk cooling tanks are widely used in small-scale farm collection and small dairy farm.
2.Feature
High efficiency cooling.Reliable electronic control
3.Compact design
Capacity from 300L to 1000L
4.Specification:
1)MOQ:1 sets
2)Compressor:Danfuss/Maneurope(According to customer's requirements)
3)Automatic control cabinet:Schneider
4)Consturction material:SUS304.
Different types tank has different application
Stainless steel Storage tank: storage material
Stainless steel Mixing tank / Agitator tank: mix or shear material
Stainless steel Milk storage tank / Milk cooling tank: storage, cooling milk
Stainless steel Jacket tank / Melting tank: heating or cooling material
Stainless steel Fermentation tank : beer fermentation
