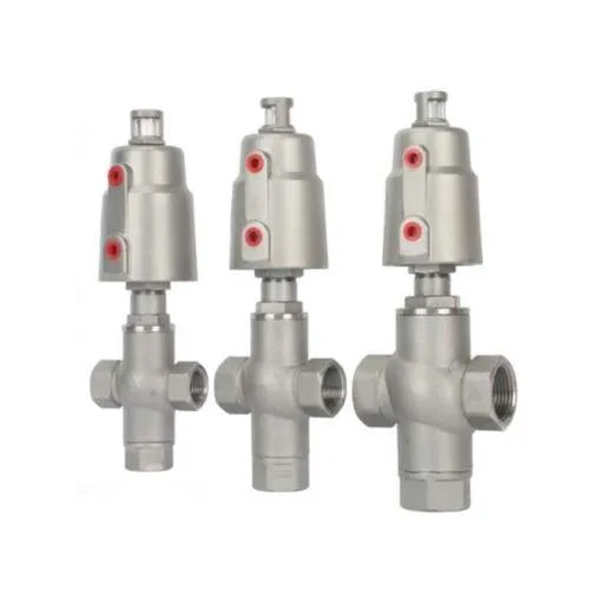

Stainless Steel Pneumatic 3 Ways Female Angle Seat Valve
- Material:
- SS304, SS316
- Type:
- Pneumatic
- Place of Origin:
- Wenzhou, China
- Packing:
- Suitable Packing for Sea/Air Transport
- Quantity:
- 10000 PCS Per Year
- Payment:
- T/T, L/C, Western Union
- Connection:
- Female
- Shape:
- Three Way
Stainless Steel Pneumatic 3 Ways Angle Seat Valve
The three way pneumatic angle seat valve has three ports that enable "reversing" and "blending" features. When the valve is in idle state, C port is closed due to force of the spring. When the actuator piston is compressed, C port is opened and B port is closed. When double acting, the valve opens and closes by compressed air.
Product Description
| Control type: | normally close, normally open, double acting. |
| Cylinder material: | stainless steel, polyamide. |
| Pneumatic accessories: | limit switch, positioner, solenoid valve, filter relief-pressure valve, manual operating device. |
| Medium temperature: | PTFE:-30~+180ºC F46:-30~+220ºC |
| Ambient temperature: | -30~+80ºC |
| Nominal diameter: | DN15~DN100mm |
| Nominal pressure: | 1.0~1.6MPA |
| Connection: | thread, flange, clamp, weld. |
| Body structure: | one-piece |
| Body material: | 304, 316, 316L. |
| Spool material: | 304, 316, 316L. |
| Seal material: | PTFE,F46. |
| Appliance medium: | steam, water, air, oil, gas etc. |
