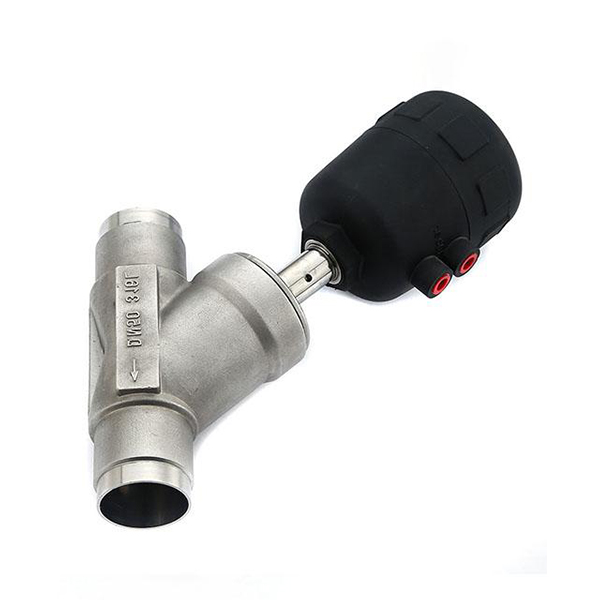

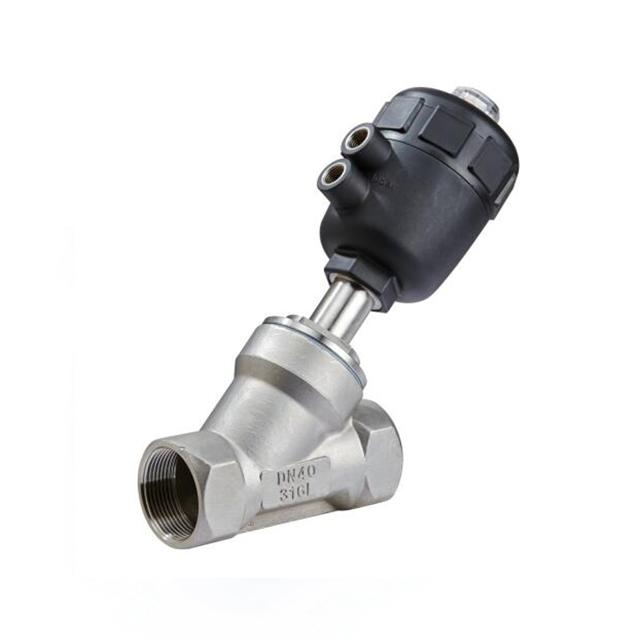

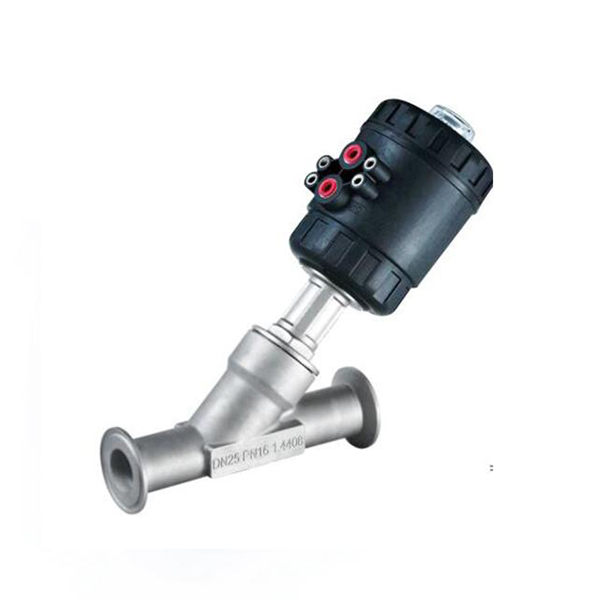

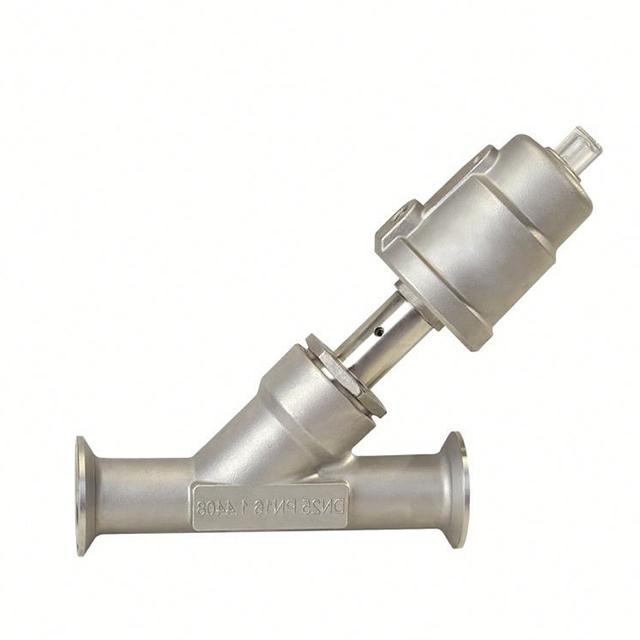

Sanitary Forging Stainless Steel Clamp Angle Seat Valve
- Material:
- SS304,SS316L
- Size:
- 3/8"~3" DN10~DN80
- Place of Origin:
- Wenzhou, China
- Connection:
- Thread,Clamp,Weld,Union
- Standard or Nonstandard:
- 3A DIN SMS
The Angle seat valve maintains the flow rate to save space .It uses a single-acting pneumatic actuator with spring safety to operate the steering angle seat valve. When used, it should be normally open or normally closed. The product is made of stainless steel and Teflon.It can be used in most gases, liquids, steam and corrosive applications. It has a radiator to protect the actuator. It ensures a long life of the valve.
| Connections | Thread,Clamp,Weld,Union |
| Material | SS304,SS316L |
| Operated | Manual, Pneumatic |
| Size | 3/8"~3" DN10~DN80 |
| Standard | 3A DIN SMS |
| Medium Temperature | -20℃~+180℃ （normal type） -20℃~+300℃ （High Temperature） |
| Enviroment Temperature | -10℃~+60℃ |
Applications
Control gas:neutral gas, air control liquid:automation industry control fluid, foodstuff dairy industry,domestic water,common pipeline fluid medium and so on. The angle seat valve is extensively use to frequently start in short time, with feature of response delicacy and exact action.
Operating Principle
Has a valve open or closed position display.
External pneumatic pilot for increased service life and maintenance free.
Self-adjusting gland between the overflow and the slide for improved sealing.
Body angle structure for high flow rates(especially compared to conventional shut- off valves)Compact and fast response.
